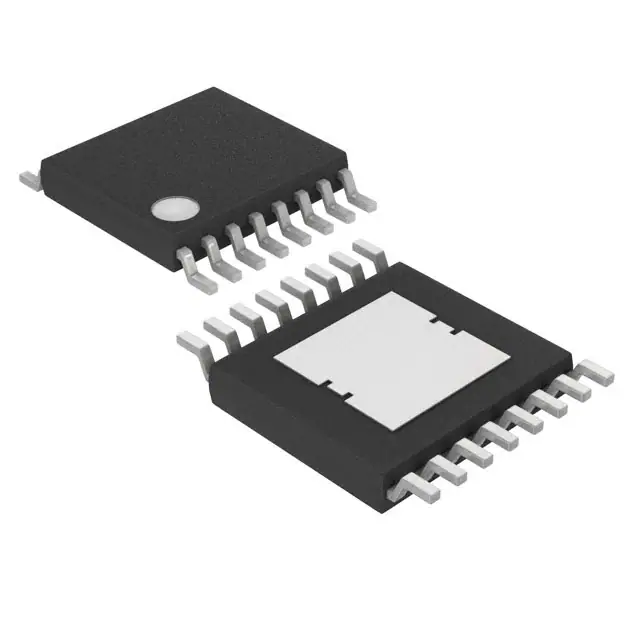

| Part Number | MAX15004AAUE/V+T | MAX15005AAUE/V+T | MAX15004BAUE/V+T | MAX15004AAUE/V+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Last Time Buy | Obsolete | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Boost, Flyback, SEPIC | Boost, Flyback, SEPIC | Boost, Flyback, SEPIC | Boost, Flyback, SEPIC |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V | 4.5V ~ 40V | 4.5V ~ 40V | 4.5V ~ 40V |
| Frequency - Switching | 15kHz ~ 500kHz | 15kHz ~ 1MHz | 15kHz ~ 500kHz | 15kHz ~ 500kHz |
| Duty Cycle (Max) | 50% | 80% | 50% | 50% |
| Synchronous Rectifier | No | No | No | No |
| Clock Sync | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - |
| Control Features | Enable, Frequency Control, Soft Start | Enable, Frequency Control, Soft Start | Enable, Frequency Control, Soft Start | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP | 16-TSSOP-EP |
