| Part Number | MAX14750AEWA+T | MAX14750BEWA+T | MAX14750CEWA+T | MAX14720AEWA+T | MAX14750AEWA+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active |
| Topology | Step-Down (Buck) (1), Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) | Step-Down (Buck) (1), Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) | Step-Down (Buck) (1), Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) | Step-Down (Buck) (1), Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) | Step-Down (Buck) (1), Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) |
| Number of Outputs | 3 | 3 | 1 | 3 | 3 |
| Frequency - Switching | 2MHz | 2MHz | 2MHz | 2MHz | 2MHz |
| Voltage/Current - Output 1 | 2.5V ~ 5V, PROG | 2.5V ~ 5V, PROG | 2.5V ~ 5V, PROG | 2.5V ~ 5V, PROG | 2.5V ~ 5V, PROG |
| Voltage/Current - Output 2 | 1V ~ 2V, 250mA | 1V ~ 2V, 250mA | 1V ~ 2V, 250mA | 1V ~ 2V, 250mA | 1V ~ 2V, 250mA |
| Voltage/Current - Output 3 | 0.9V ~ 4V, 100mA | 0.9V ~ 4V, 100mA | 0.9V ~ 4V, 100mA | 0.9V ~ 4V, 100mA | 0.9V ~ 4V, 100mA |
| w/LED Driver | No | No | No | No | No |
| w/Supervisor | No | No | No | No | No |
| w/Sequencer | No | No | No | No | No |
| Voltage - Supply | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

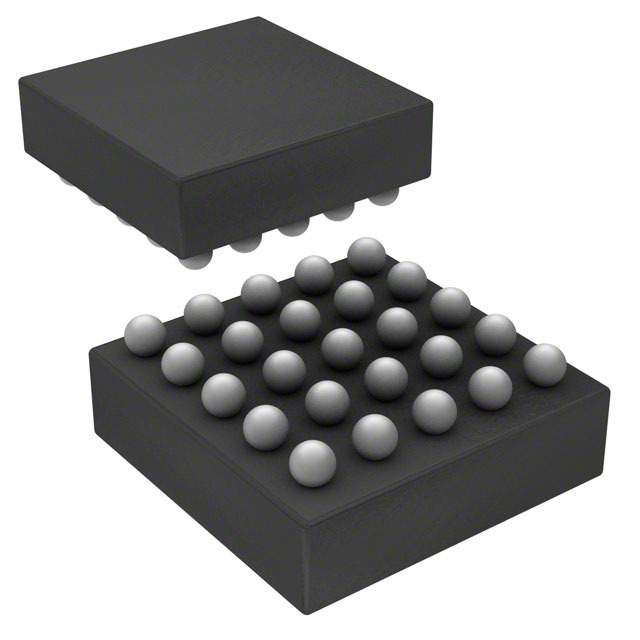

| Package / Case | 25-WFBGA, WLBGA | 25-WFBGA, WLBGA | 25-WFBGA, WLBGA | 25-WFBGA, WLBGA | 25-WFBGA, WLBGA |
| Supplier Device Package | 25-WLP (2.11x2.23) | 25-WLP (2.11x2.23) | 25-WLP (2.11x2.23) | 25-WLP (2.11x2.23) | 25-WLP (2.11x2.23) |
