Please send RFQ , we will respond immediately.
| Part Number | MAX14745JEWX+T | MAX14745REWX+T | MAX14745LEWX+T | MAX14745MEWX+T | MAX14745PEWX+T | MAX14745OEWX+T | MAX14745KEWX+T | MAX14745AEWX+T | MAX14745CEWX+T | MAX14745DEWX+T | MAX14745EEWX+T | MAX14745FEWX+T | MAX14745GEWX+T | MAX14745HEWX+T | MAX14745IEWX+T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active | Active | Active |
| Battery Chemistry | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion |
| Number of Cells | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Current - Charging | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Programmable Features | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage | Voltage |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current | Over Current, Over Temperature, Over Voltage | Over Temperature, Over Voltage, Reverse Current | Over Current, Over Temperature, Over Voltage | Over Current, Over Temperature, Over Voltage | Over Current, Over Temperature, Over Voltage | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current | Over Temperature, Over Voltage, Reverse Current |
| Charge Current - Max | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Battery Pack Voltage | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Interface | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB | I²C, USB |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

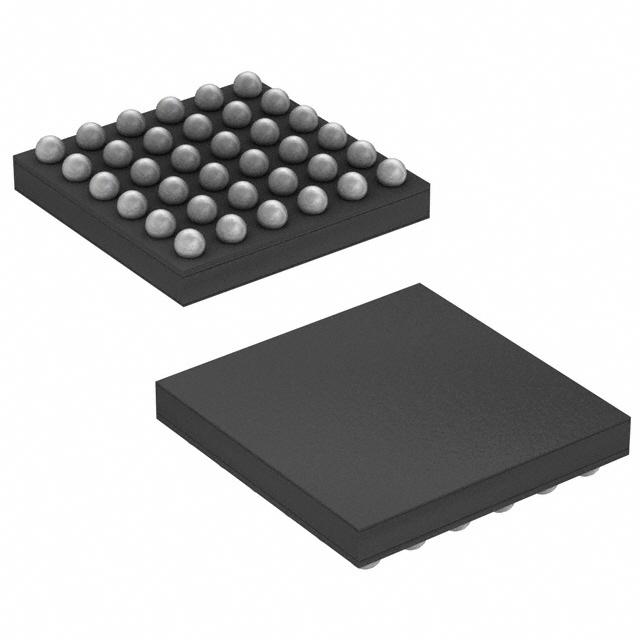

| Package / Case | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA | 36-WFBGA, WLBGA |
| Supplier Device Package | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) | 36-WLP (2.69x2.44) |
