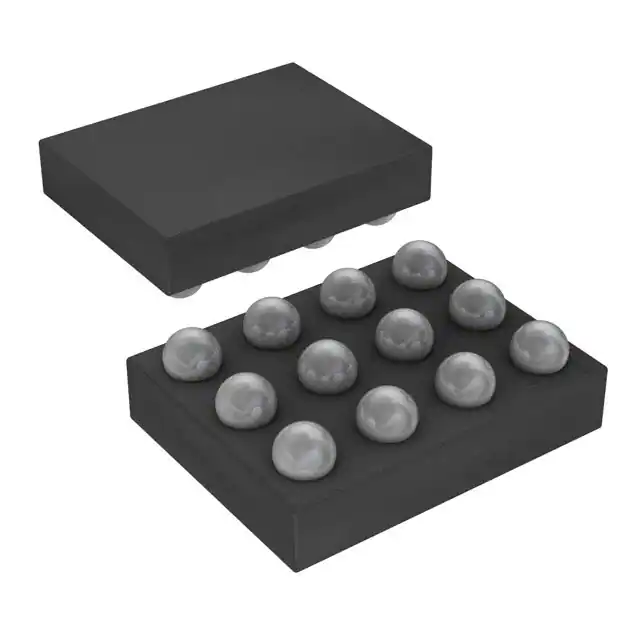

| Part Number | MAX14505AEWC+T | MAX14505EWC+T |
|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 500mOhm | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm | 10mOhm |
| Voltage - Supply, Single (V+) | 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 60ms, 3µs | 60ms, 3µs |
| -3db Bandwidth | - | - |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 65pF | 65pF |
| Current - Leakage (IS(off)) (Max) | 50nA | 50nA |
| Crosstalk | -90dB @ 20kHz | -90dB @ 20kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 12-WFBGA, WLBGA | 12-WFBGA, WLBGA |
| Supplier Device Package | 12-WLP (2.14x1.56) | 12-WLP (2.14x1.56) |
