Please send RFQ , we will respond immediately.
| Part Number | MAX1277ACTC+T | MAX1279ACTC+T | MAX1277BCTC+T | MAX1274ACTC+T | MAX1275ACTC+T | MAX1277ACTC+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 1.5M | 1.5M | 1.5M | 1.8M | 1.8M | 1.5M |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | - |
| Input Type | Differential | Differential | Differential | Differential | Differential | - |
| Data Interface | SPI | SPI | SPI | SPI | SPI | - |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | - |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | - |
| Reference Type | Internal | Internal | Internal | External | External | - |
| Voltage - Supply, Analog | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 5V | 5V | - |
| Voltage - Supply, Digital | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | - |
| Features | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |

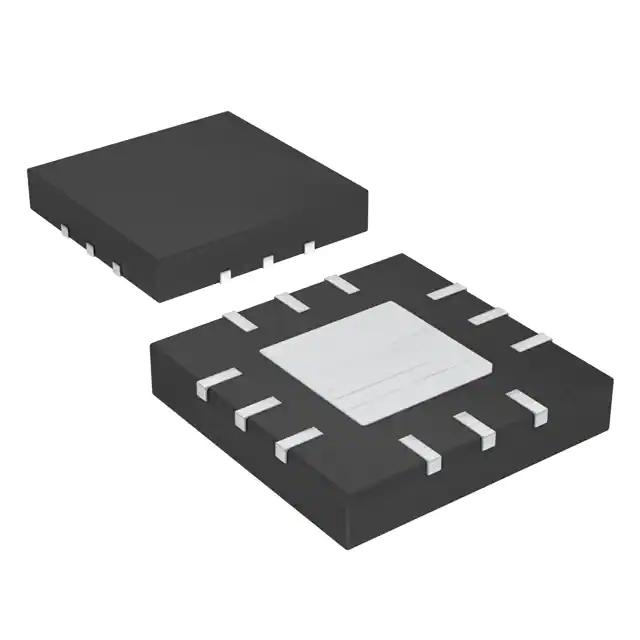

| Package / Case | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
