Please send RFQ , we will respond immediately.
| Part Number | MAX1275ACTC+T | MAX1279ACTC+T | MAX1277ACTC+T | MAX1275AETC+T | MAX1275BCTC+T | MAX1274ACTC+T | MAX1275ACTC+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 1.8M | 1.5M | 1.5M | 1.8M | 1.8M | 1.8M | 1.8M |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential |
| Data Interface | SPI | SPI | SPI | SPI | SPI | SPI | SPI |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External | Internal | Internal | External | External | External | External |
| Voltage - Supply, Analog | 5V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V |
| Features | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |

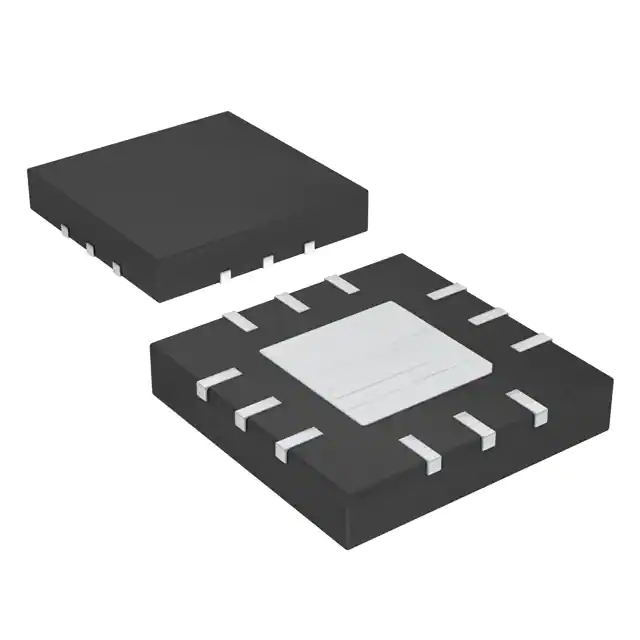

| Package / Case | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) | 12-TQFN (4x4) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
