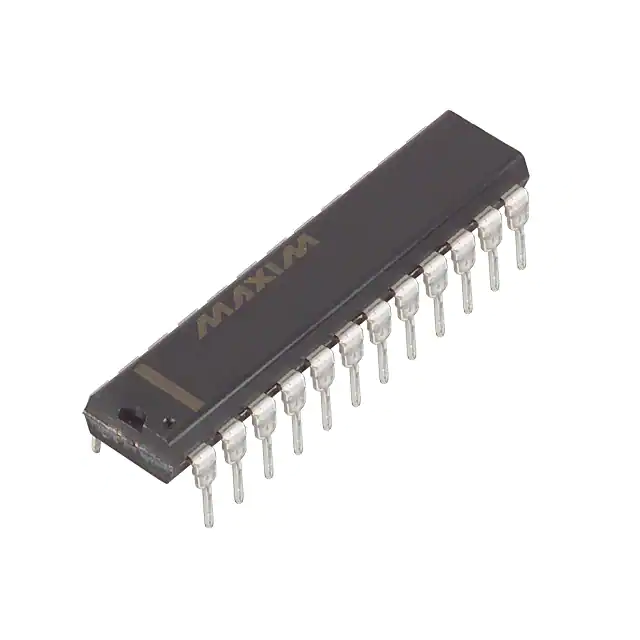

| Part Number | MAX122BENG | MAX122BEWG | MAX122BENG+ | MAX122AENG | MAX122BCNG | MAX122BEAG |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 333k | 333k | 333k | 333k | 333k | 333k |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V, -10.8V ~ 15.75V | 5V, -10.8V ~ 15.75V | 5V, -10.8V ~ 15.75V | 5V, -10.8V ~ 15.75V | 5V, -10.8V ~ 15.75V | 5V, -10.8V ~ 15.75V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V | 5V |
| Features | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-PDIP | 24-SOIC | 24-PDIP | 24-PDIP | 24-PDIP | 24-SSOP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Surface Mount |
