Please send RFQ , we will respond immediately.

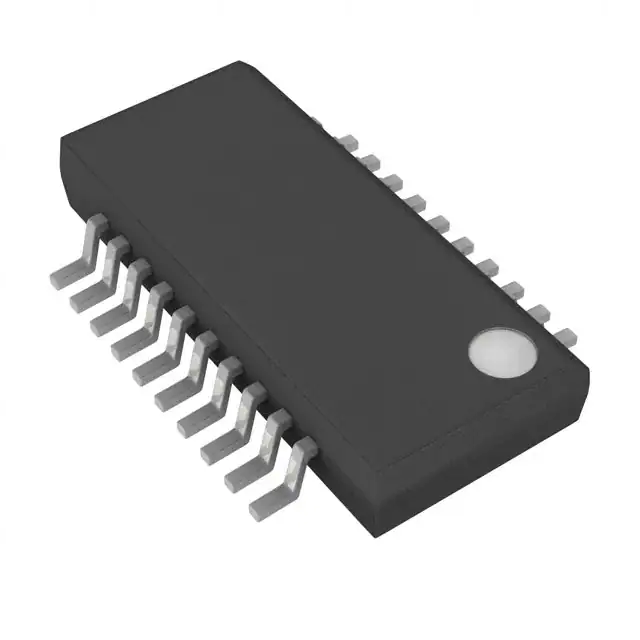

| Part Number | MAX1228BEEP+ | MAX1229BEEP+ | MAX1228BEEP+T | MAX1228AEEP+ | MAX1228BCEP+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 300k | 300k | 300k | 300k | 300k |
| Number of Inputs | 6, 12 | 6, 12 | 6, 12 | 6, 12 | 6, 12 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | SPI | SPI | SPI | SPI | SPI |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | 2.7V ~ 3.6V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 2.7V ~ 3.6V | 5V | 5V | 5V |
| Features | Temperature Sensor | Temperature Sensor | Temperature Sensor | Temperature Sensor | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP | 20-QSOP | 20-QSOP | 20-QSOP | 20-QSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
