| Part Number | MAX1185ECM+TD | MAX1186ECM+TD | MAX1180ECM+TD | MAX1181ECM+TD | MAX1182ECM+TD | MAX1183ECM+TD | MAX1184ECM+TD | MAX1185ECM+D |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Sampling Rate (Per Second) | 20M | 40M | 105M | 80M | 65M | 40M | 20M | 20M |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

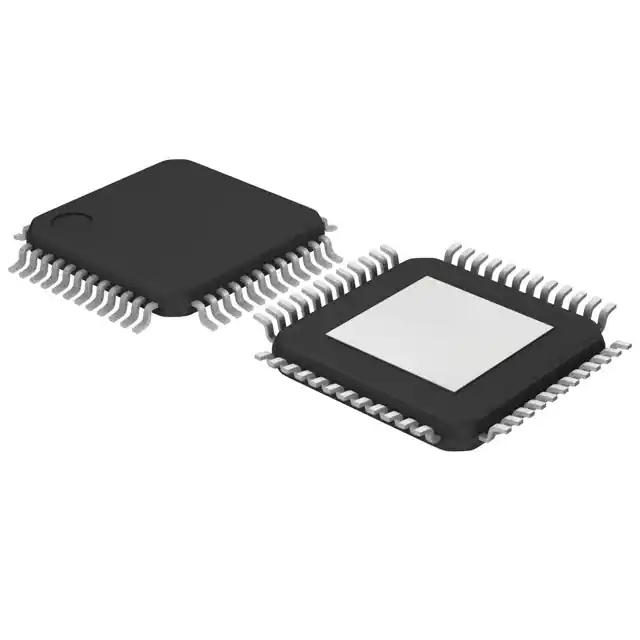

| Package / Case | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) | 48-TQFP-EP (7x7) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
