| Part Number | MAX11329ATJ+ | MAX11339ATJ+ | MAX11329ATJ+T | MAX11321ATJ+ | MAX11322ATJ+ | MAX11324ATJ+ | MAX11325ATJ+ | MAX11327ATJ+ | MAX11328ATJ+ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete | Active |
| Number of Bits | 10 | 10 | 10 | 10 | 12 | 10 | 12 | 10 | 12 |
| Sampling Rate (Per Second) | 3M | 500k | 3M | 1M | 1M | 1M | 1M | 1M | 1M |
| Number of Inputs | 8, 15, 16 | 4, 8 | 8, 15, 16 | 2, 4 | 2, 4 | 4, 8 | 4, 8 | 8, 15, 16 | 8, 15, 16 |
| Input Type | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V | 2.35V ~ 3.6V |
| Features | - | PGA | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

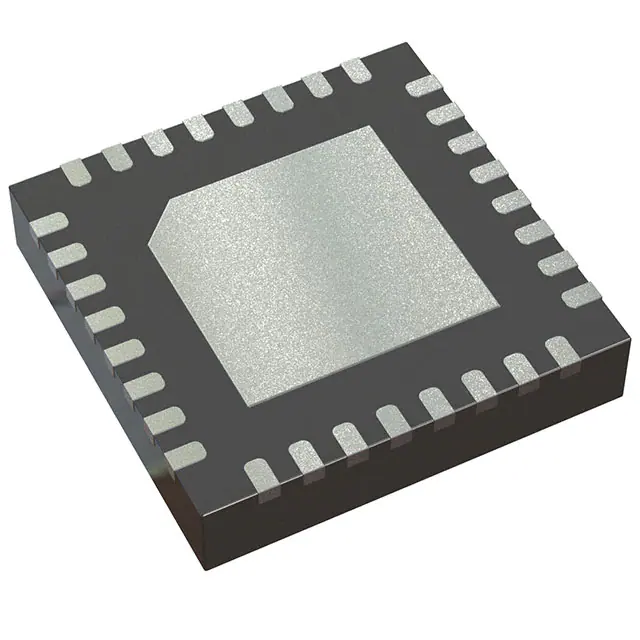

| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
