Please send RFQ , we will respond immediately.
| Part Number | MAX11056ECB+T | MAX11057ECB+T | MAX11059ECB+T | MAX11058ECB+T | MAX11046ECB+T | MAX11054ECB+T | MAX11055ECB+T | MAX11056ECB+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete | Obsolete | Active |
| Number of Bits | 14 | 14 | 14 | 14 | 16 | 14 | 14 | 14 |
| Sampling Rate (Per Second) | 250k | 250k | 250k | 250k | 250k | 250k | 250k | 250k |
| Number of Inputs | 8 | 4 | 8 | 6 | 8 | 4 | 6 | 8 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 8 | 4 | 8 | 6 | 8 | 4 | 6 | 8 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

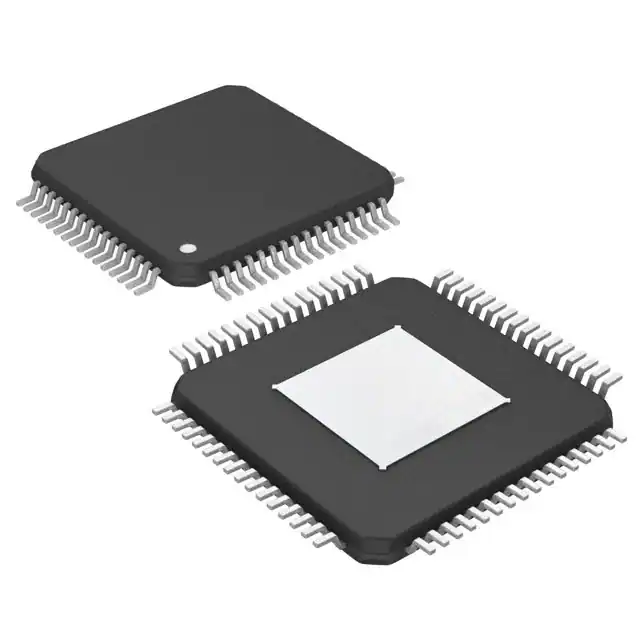

| Package / Case | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad | 64-TQFP Exposed Pad |
| Supplier Device Package | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) | 64-TQFP-EP (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
