| Part Number | MAT03FH | MAT03FHZ | MAT03EH |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | 2 PNP (Dual) | 2 PNP (Dual) | 2 PNP (Dual) |
| Current - Collector (Ic) (Max) | 20mA | 20mA | 20mA |
| Voltage - Collector Emitter Breakdown (Max) | 36V | 36V | 36V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 100µA, 1mA | 100mV @ 100µA, 1mA | 100mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | - | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | - |
| Power - Max | 500mW | 500mW | 500mW |
| Frequency - Transition | 190MHz | 190MHz | 190MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

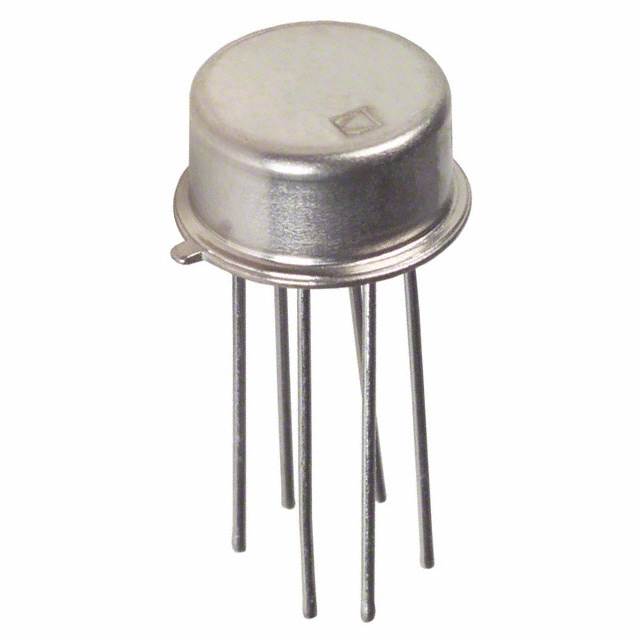

| Package / Case | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can |
| Supplier Device Package | TO-78-6 | TO-78-6 | TO-78-6 |
