| Part Number | MAT01GH | MAT01GHZ | MAT01AH |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | 2 NPN (Dual) Matched Pair | 2 NPN (Dual) Matched Pair | 2 NPN (Dual) Matched Pair |
| Current - Collector (Ic) (Max) | 25mA | 25mA | 25mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V | 45V | 45V |
| Vce Saturation (Max) @ Ib, Ic | 800mV @ 1mA, 10mA | 800mV @ 1mA, 10mA | 800mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 400nA | 400nA | 300nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | - |
| Power - Max | 500mW | 500mW | 500mW |
| Frequency - Transition | 450MHz | 450MHz | 450MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

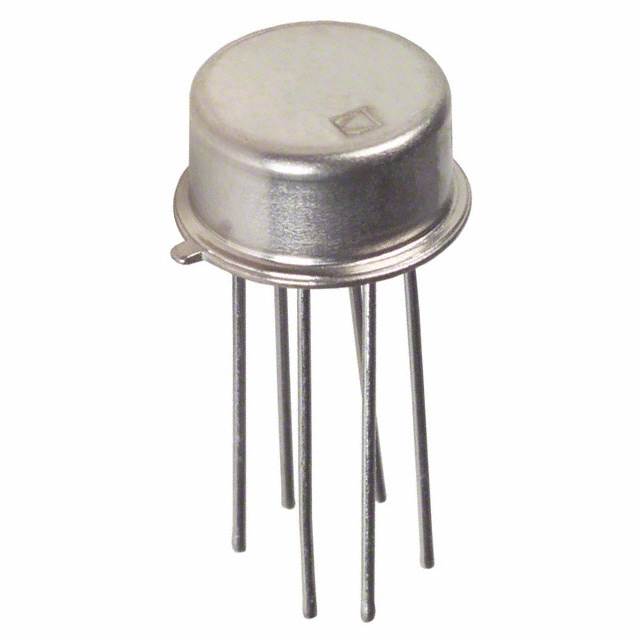

| Package / Case | TO-78-6 Metal Can | TO-78-6 Metal Can | TO-78-6 Metal Can |
| Supplier Device Package | TO-78-6 | TO-78-6 | TO-78-6 |
