Please send RFQ , we will respond immediately.

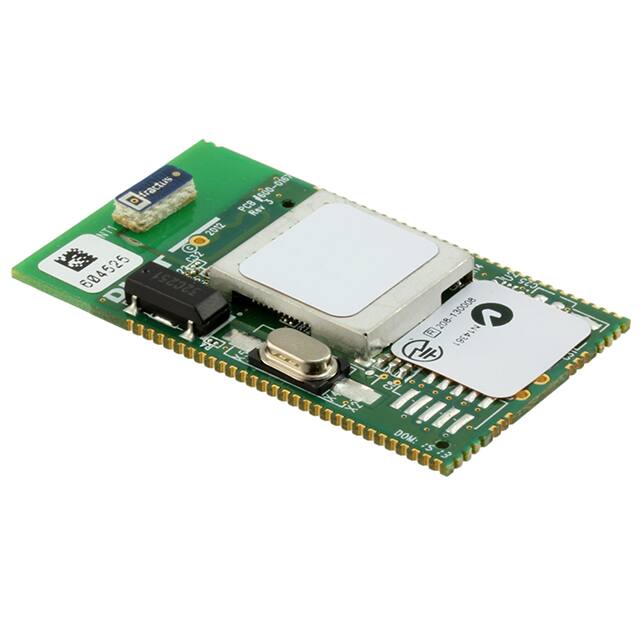

| Part Number | LTP5901IPC-WHMA1A2#PBF | LTP5902IPC-WHMA1A2#PBF | LTP5901IPC-WHMA1B2#PBF | LTP5900IPC-WHMA1A2#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | WirelessHART | WirelessHART | WirelessHART | WirelessHART |
| Modulation | - | - | - | DSSS |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 250kbps | 250kbps | 250kbps | 250kbps |
| Power - Output | 8dBm | 8dBm | 8dBm | 8dBm |
| Sensitivity | -95dBm | -95dBm | -95dBm | -95dBm |
| Serial Interfaces | SPI, UART | SPI, UART | SPI, UART | SPI, UART |
| Antenna Type | Integrated, Chip | Antenna Not Included, MMCX | Integrated, Chip | Antenna Not Included, MMCX |
| Utilized IC / Part | - | - | - | - |
| Memory Size | 512kB Flash, 72kB SRAM | 512kB Flash, 72kB SRAM | 512kB Flash, 72kB SRAM | - |
| Voltage - Supply | 2.1V ~ 3.76V | 2.1V ~ 3.76V | 2.1V ~ 3.76V | 2.75V ~ 3.76V |
| Current - Receiving | 4.5mA | 4.5mA | 4.5mA | 4.5mA |
| Current - Transmitting | 5.4mA ~ 9.7mA | 5.4mA ~ 9.7mA | 5.4mA ~ 9.7mA | 5.4mA ~ 9.7mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 66-SMD Module | 66-SMD Module | 66-SMD Module | 22-DIP Module |
