| Part Number | LTM9009CY-14#PBF | LTM9009IY-14#PBF | LTM9006CY-14#PBF | LTM9007CY-14#PBF | LTM9008CY-14#PBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 14 | 14 | 14 | 14 | 14 |
| Sampling Rate (Per Second) | 80M | 80M | 25M | 40M | 65M |
| Number of Inputs | 8 | 8 | 8 | 8 | 8 |
| Input Type | Differential | Differential | Differential | Differential | Differential |
| Data Interface | LVDS - Serial | LVDS - Serial | LVDS - Serial | LVDS - Serial | LVDS - Serial |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 8 | 8 | 8 | 8 | 8 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |

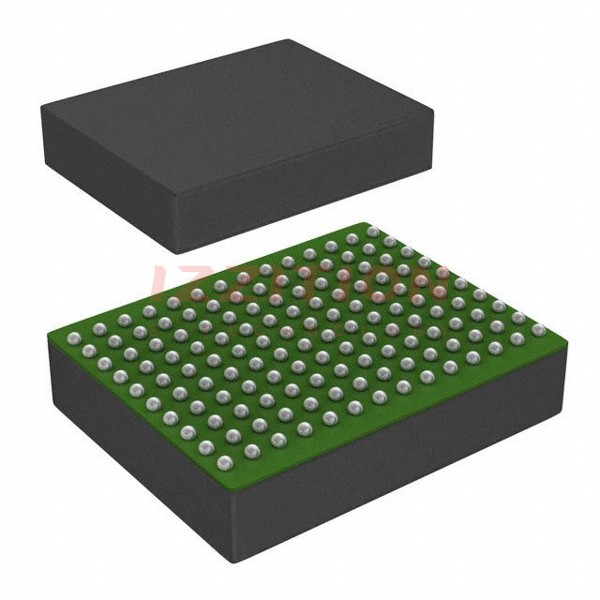

| Package / Case | 140-BFBGA | 140-BFBGA | 140-BFBGA | 140-BFBGA | 140-BFBGA |
| Supplier Device Package | 140-BGA (11.25x9) | 140-BGA (11.25x9) | 140-BGA (11.25x9) | 140-BGA (11.25x9) | 140-BGA (11.25x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
