LTM9006IY-14#PBF
  • Share:

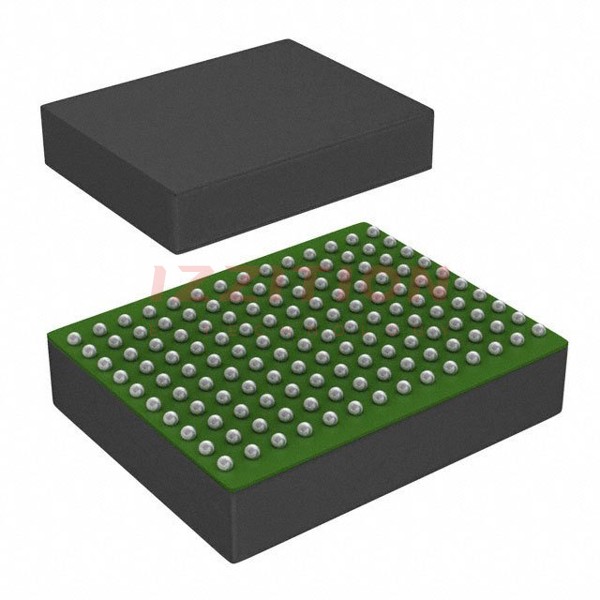

Analog Devices Inc. LTM9006IY-14#PBF

Manufacturer No:
LTM9006IY-14#PBF
Manufacturer:
Analog Devices Inc.
Package:
Tray
Datasheet:
LTM9006IY-14#PBF Datasheet
ECAD Model:
-
Description:
IC ADC 14BIT PIPELINED 140BGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:14
Sampling Rate (Per Second):25M
Number of Inputs:8
Input Type:Differential
Data Interface:LVDS - Serial
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:8
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:1.7V ~ 1.9V
Voltage - Supply, Digital:1.7V ~ 1.9V
Features:Simultaneous Sampling
Operating Temperature:-40°C ~ 85°C
Package / Case:140-BFBGA
Supplier Device Package:140-BGA (11.25x9)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$75.23
2

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTM9006IY-14#PBF LTM9007IY-14#PBF   LTM9008IY-14#PBF   LTM9009IY-14#PBF   LTM9006CY-14#PBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active
Number of Bits 14 14 14 14 14
Sampling Rate (Per Second) 25M 40M 65M 80M 25M
Number of Inputs 8 8 8 8 8
Input Type Differential Differential Differential Differential Differential
Data Interface LVDS - Serial LVDS - Serial LVDS - Serial LVDS - Serial LVDS - Serial
Configuration S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 8 8 8 8 8
Architecture Pipelined Pipelined Pipelined Pipelined Pipelined
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V
Voltage - Supply, Digital 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V 1.7V ~ 1.9V
Features Simultaneous Sampling Simultaneous Sampling Simultaneous Sampling Simultaneous Sampling Simultaneous Sampling
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C
Package / Case 140-BFBGA 140-BFBGA 140-BFBGA 140-BFBGA 140-BFBGA
Supplier Device Package 140-BGA (11.25x9) 140-BGA (11.25x9) 140-BGA (11.25x9) 140-BGA (11.25x9) 140-BGA (11.25x9)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
