| Part Number | LTC7840IFE#TRPBF | LTC7840EFE#TRPBF | LTC7840HFE#TRPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Type | PWM | PWM | PWM |
| Function | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 2 | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 5.5V ~ 60V | 5.5V ~ 60V | 5.5V ~ 60V |
| Frequency - Switching | 50kHz ~ 425kHz | 50kHz ~ 425kHz | 50kHz ~ 425kHz |
| Duty Cycle (Max) | 96% | 96% | 96% |
| Synchronous Rectifier | No | No | No |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

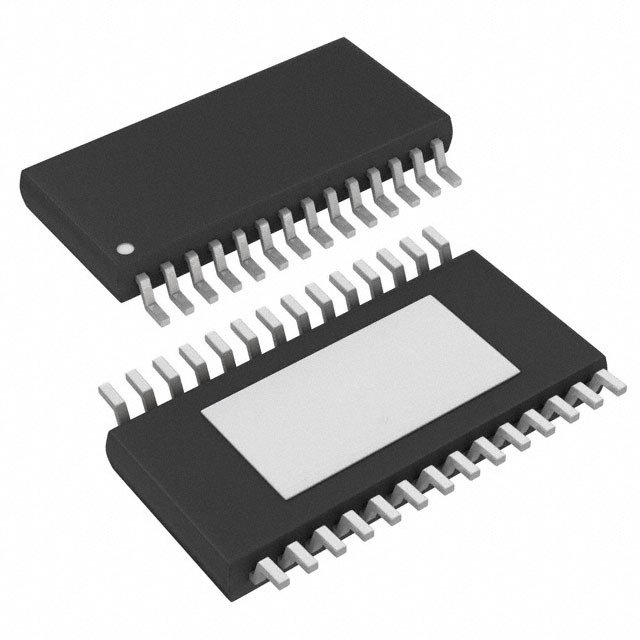

| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP | 28-TSSOP-EP | 28-TSSOP-EP |
