| Part Number | LTC7813EUH#PBF | LTC7813IUH#PBF | LTC7813HUH#PBF | LTC7812EUH#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Down | Step-Up, Step-Down | Step-Up, Step-Down | Step-Up, Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck, Boost | Buck, Boost | Buck, Boost | Buck, Boost |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V | 4.5V ~ 60V | 4.5V ~ 60V | 4.5V ~ 38V |
| Frequency - Switching | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 105kHz ~ 835kHz, 350kHz ~ 535kHz | 115kHz ~ 835kHz, 350kHz ~ 535kHz |
| Duty Cycle (Max) | 96%, 99% | 96%, 99% | 96%, 99% | 96%, 99% |
| Synchronous Rectifier | Yes | Yes | Yes | No |
| Clock Sync | No | No | No | No |
| Serial Interfaces | - | - | - | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking | Enable, Frequency Control, Power Good, Soft Start, Tracking | Enable, Frequency Control, Power Good, Soft Start, Tracking | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

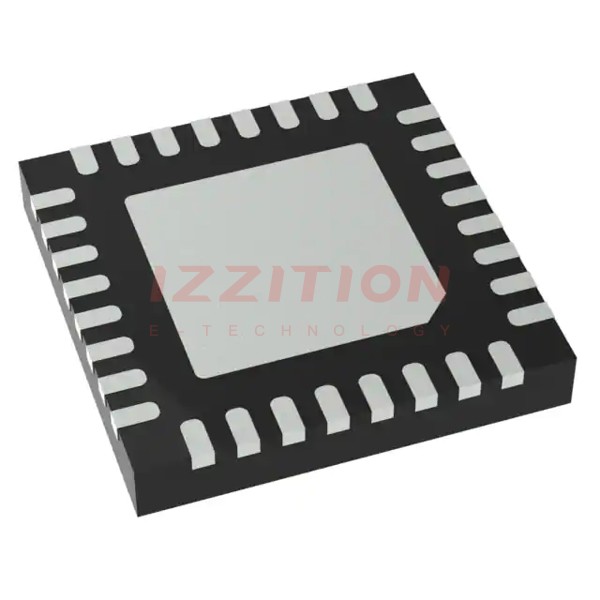

| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) |
