| Part Number | LTC7810HLXE#PBF | LTC7810ILXE#PBF | LTC7810ELXE#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 2 | 2 | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 140V | 4.5V ~ 140V | 4.5V ~ 140V |
| Frequency - Switching | 105kHz ~ 780kHz | 105kHz ~ 780kHz | 105kHz ~ 780kHz |
| Duty Cycle (Max) | 100% | 100% | 100% |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Frequency Control, Soft Start | Current Limit, Frequency Control, Soft Start | Current Limit, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

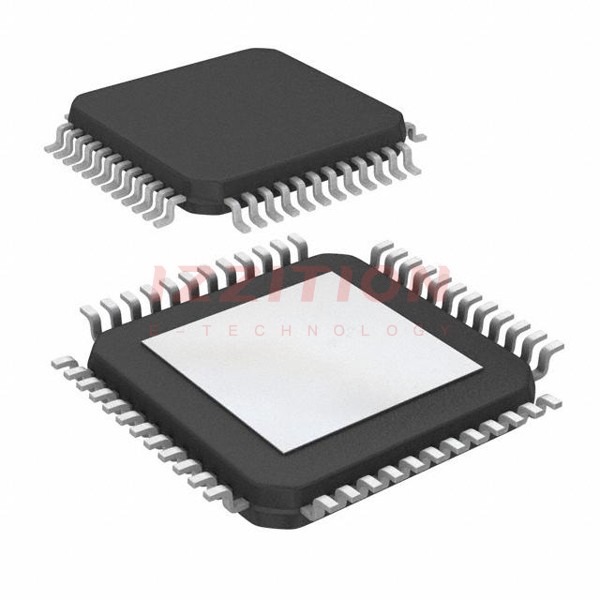

| Package / Case | 48-LQFP Exposed Pad | 48-LQFP Exposed Pad | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-eLQFP (7x7) | 48-eLQFP (7x7) | 48-eLQFP (7x7) |
