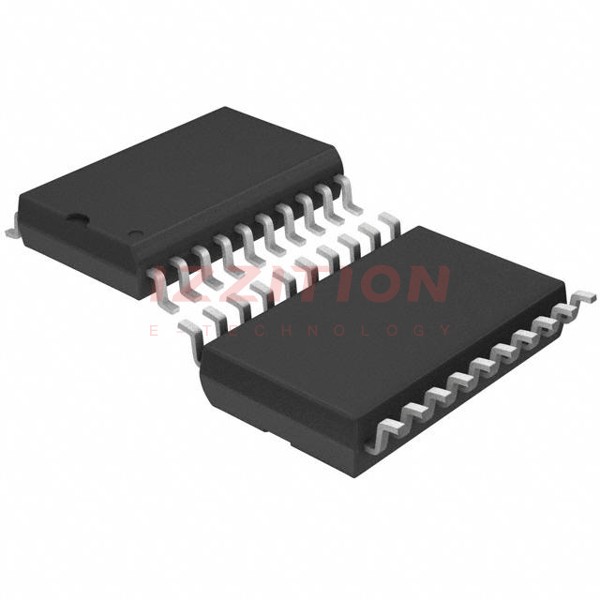

| Part Number | LTC7545ABSW#TRPBF | LTC7545AKSW#TRPBF | LTC7545ALSW#TRPBF | LTC7545ACSW#TRPBF | LTC7541ABSW#TRPBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 1µs | 1µs | 1µs | 1µs | 600ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External |
| Voltage - Supply, Analog | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | 5V ~ 16V |
| Voltage - Supply, Digital | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | 5V, 14.25V ~ 15.75V | 5V ~ 16V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO | 20-SO | 20-SO | 20-SO | 18-SO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
