Please send RFQ , we will respond immediately.

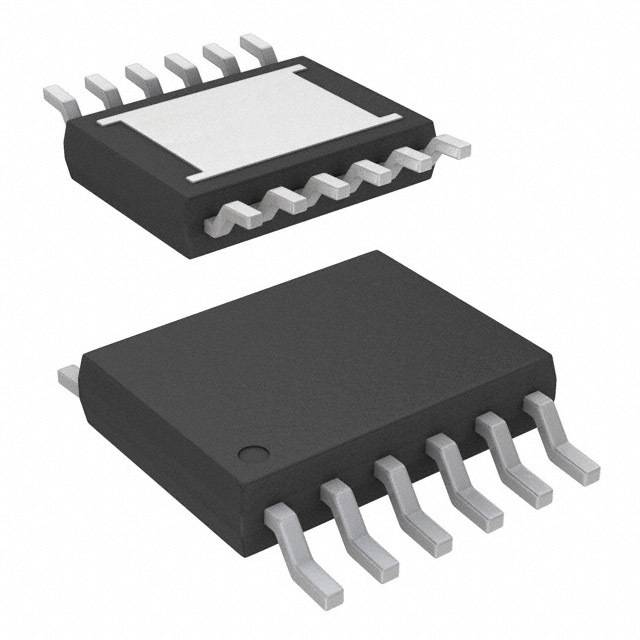

| Part Number | LTC7060IMSE#WPBF | LTC7061IMSE#WPBF | LTC7060JMSE#WPBF | LTC7060EMSE#WPBF | LTC7060IMSE#PBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Interface | Logic, PWM, SPI | Logic, PWM | PWM | PWM | PWM |
| Load Type | Inductive, Capacitive, Resistive | Inductive, Capacitive, Resistive | Capacitive | Inductive, Capacitive, Resistive | Capacitive |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Rds On (Typ) | 1.5Ohm LS, 1.5Ohm HS | 1.5Ohm LS, 1.5Ohm HS | 1.5Ohm LS, 1.5mOhm HS | 800mOhm LS, 1.5Ohm HS | 1.5Ohm LS, 1.5mOhm HS |
| Current - Output / Channel | 6A | 6A | - | 6A | - |
| Current - Peak Output | 6A | 6A | 6A | 6A | 6A |
| Voltage - Supply | 6V ~ 14V | 5V ~ 14V | 6V ~ 14V | 6V ~ 14V | 6V ~ 14V |
| Voltage - Load | 6V ~ 14V | 5V ~ 14V | 6V ~ 14V | 6V ~ 14V | 6V ~ 14V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | Shoot-Through, UVLO | Shoot-Through, UVLO | Shoot-Through, UVLO | Shoot-Through, UVLO | Shoot-Through, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP | 12-MSOP-EP | 12-MSOP-EP | 12-MSOP-EP | 12-MSOP-EP |
