| Part Number | LTC7004HMSE#PBF | LTC7004IMSE#PBF | LTC7000HMSE#PBF | LTC7001HMSE#PBF | LTC7003HMSE#PBF | LTC7004EMSE#PBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Driven Configuration | High-Side | High-Side | High-Side | High-Side | High-Side | High-Side |
| Channel Type | Single | Single | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 | 1 | 1 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 3.5V ~ 15V | 3.5V ~ 15V | 3.5V ~ 135V | 3.5V ~ 15V | 3.5V ~ 15V | 3.5V ~ 15V |
| Logic Voltage - VIL, VIH | - | - | 1.8V, 1.7V | - | - | - |
| Current - Peak Output (Source, Sink) | - | - | - | - | - | - |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 60 V | 60 V | 135 V | 135 V | 60 V | 60 V |
| Rise / Fall Time (Typ) | 90ns, 40ns | 90ns, 40ns | 90ns, 40ns | 90ns, 40ns | 90ns, 40ns | 90ns, 40ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

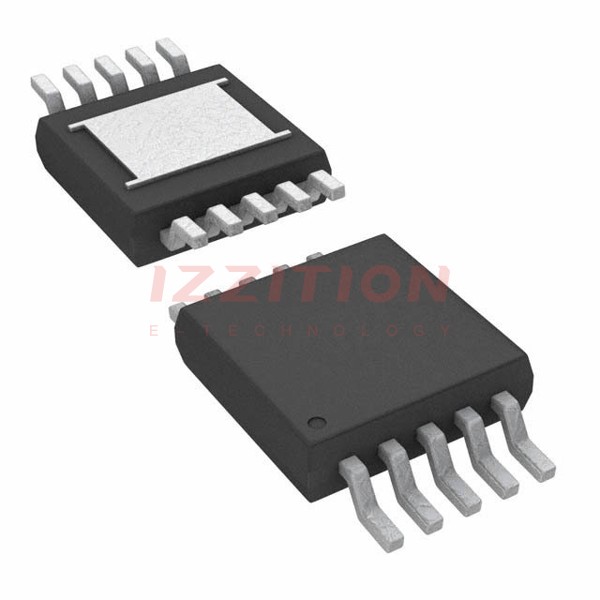

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP | 10-MSOP-EP | 16-MSOP-EP | 10-MSOP-EP | 16-MSOP-EP | 10-MSOP-EP |
