Please send RFQ , we will respond immediately.

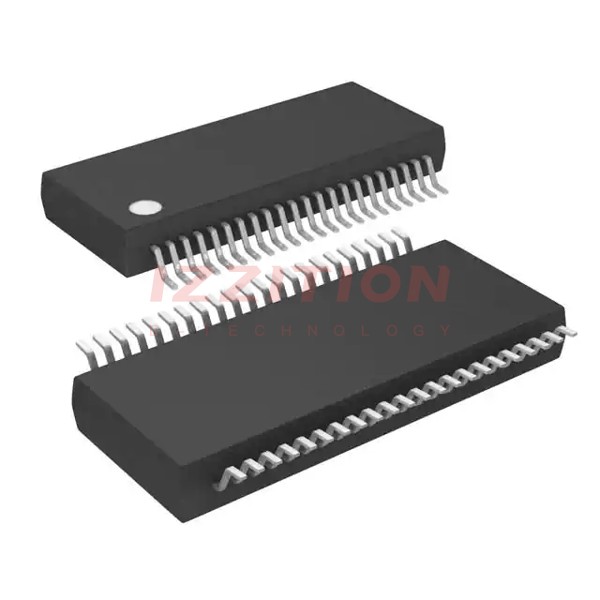

| Part Number | LTC6803IG-2#PBF | LTC6803IG-3#PBF | LTC6803IG-4#PBF | LTC6804IG-2#PBF | LTC6802IG-2#PBF | LTC6803HG-2#PBF | LTC6803IG-1#PBF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Battery Monitor | Battery Monitor | Battery Monitor | Battery Monitor | Battery Monitor | Battery Monitor | Battery Monitor |
| Battery Chemistry | Multi-Chemistry | Multi-Chemistry | Multi-Chemistry | Multi-Chemistry | Lithium Ion | Multi-Chemistry | Multi-Chemistry |
| Number of Cells | 1 ~ 12 | 1 ~ 12 | 1 ~ 12 | 1 ~ 12 | 1 ~ 12 | 1 ~ 12 | 1 ~ 12 |
| Fault Protection | Over/Under Voltage | Over/Under Voltage | Over/Under Voltage | Over/Under Voltage | Over/Under Voltage | Over/Under Voltage | Over/Under Voltage |
| Interface | Serial | Serial | Serial | I²C, SPI | Serial | Serial | Serial |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 44-FSOP (0.209", 5.30mm Width) | 44-FSOP (0.209", 5.30mm Width) | 44-FSOP (0.209", 5.30mm Width) | 48-FSOP (0.209", 5.30mm Width) | 44-FSOP (0.209", 5.30mm Width) | 44-FSOP (0.209", 5.30mm Width) | 44-FSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 44-SSOP | 44-SSOP | 44-SSOP | 48-SSOP | 44-SSOP | 44-SSOP | 44-SSOP |
