| Part Number | LTC6255IDC#TRPBF | LTC6258IDC#TRPBF | LTC6259IDC#TRPBF | LTC6256IDC#TRPBF | LTC6253IDC#TRPBF | LTC6255CDC#TRPBF | LTC6255IDC#TRMPBF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 2 | 2 | 2 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1.8V/µs | 0.24V/µs | 0.24V/µs | 1.8V/µs | 280V/µs | 1.8V/µs | 1.8V/µs |
| Gain Bandwidth Product | 6.5 MHz | 1.3 MHz | 1.3 MHz | 6.5 MHz | 720 MHz | 6.5 MHz | 6.5 MHz |
| -3db Bandwidth | 4.5 MHz | - | - | 4.5 MHz | 400 MHz | 4.5 MHz | 4.5 MHz |
| Current - Input Bias | 5 nA | 75 nA | 5 nA | 5 nA | 1.4 µA | 5 nA | 5 nA |
| Voltage - Input Offset | 100 µV | 400 µV | 100 µV | 100 µV | 100 µV | 100 µV | 100 µV |
| Current - Supply | 65µA | 20µA | 20µA (x2 Channels) | 65µA (x2 Channels) | 4.25mA (x2 Channels) | 65µA | 65µA |
| Current - Output / Channel | 35 mA | 10 mA | 10 mA | 35 mA | 100 mA | 35 mA | 35 mA |
| Voltage - Supply Span (Min) | 1.8 V | 1.8 V | 1.8 V | 1.8 V | 2.5 V | 1.8 V | 1.8 V |
| Voltage - Supply Span (Max) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

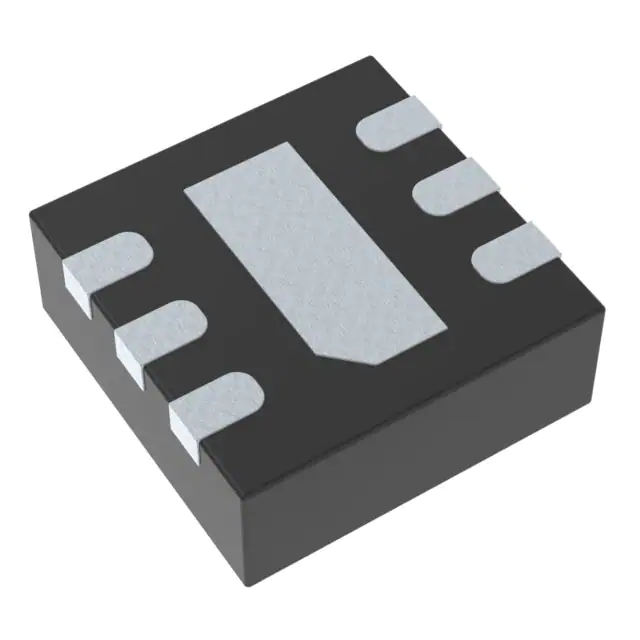

| Package / Case | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) | 8-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) |
