Please send RFQ , we will respond immediately.
| Part Number | LTC5800IWR-IPMA#PBF | LTC5800IWR-IPRA#PBF | LTC5800HWR-IPMA#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | 6LoWPAN | 6LoWPAN | 6LoWPAN |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 250kbps | 250kbps | 250kbps |
| Power - Output | 8dBm | 8dBm | 8dBm |
| Sensitivity | -95dBm | -95dBm | -95dBm |
| Memory Size | 512kB Flash, 72kB SRAM | 512kB Flash, 72kB SRAM | 512kB Flash, 72kB SRAM |
| Serial Interfaces | I²C, JTAG, SPI, UART | JTAG, SPI, UART | I²C, JTAG, SPI, UART |
| GPIO | 27 | 8 | 27 |
| Voltage - Supply | 2.1V ~ 3.76V | 2.1V ~ 3.76V | 2.1V ~ 3.76V |
| Current - Receiving | 4.5mA | 4.5mA | 4.7mA |
| Current - Transmitting | 5.4mA ~ 9.7mA | 5.4mA ~ 9.7mA | 5.6mA ~ 9.9mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

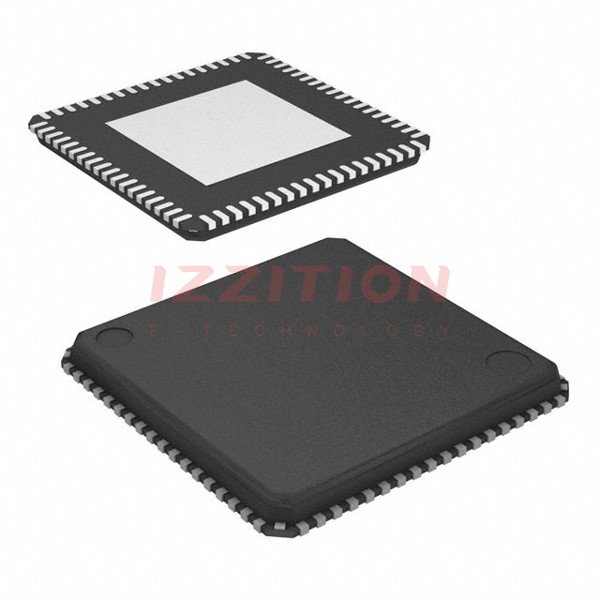

| Package / Case | 72-VFQFN Exposed Pad | 72-VFQFN Exposed Pad | 72-VFQFN Exposed Pad |
| Supplier Device Package | 72-QFN (10x10) | 72-QFN (10x10) | 72-QFN (10x10) |
