LTC3871ILXE#PBF
  • Share:

Analog Devices Inc. LTC3871ILXE#PBF

Manufacturer No:
LTC3871ILXE#PBF
Manufacturer:
Analog Devices Inc.
Package:
Tray
Datasheet:
LTC3871ILXE#PBF Datasheet
ECAD Model:
-
Description:
IC REG CTRLR BCK/BST SYN 48LQFP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Up, Step-Down
Output Configuration:Positive
Topology:Buck, Boost
Number of Outputs:2
Output Phases:Programmable
Voltage - Supply (Vcc/Vdd):1.2V ~ 100V
Frequency - Switching:60kHz ~ 460kHz
Duty Cycle (Max):98%
Synchronous Rectifier:Yes
Clock Sync:Yes
Serial Interfaces:-
Control Features:Current Limit, Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount

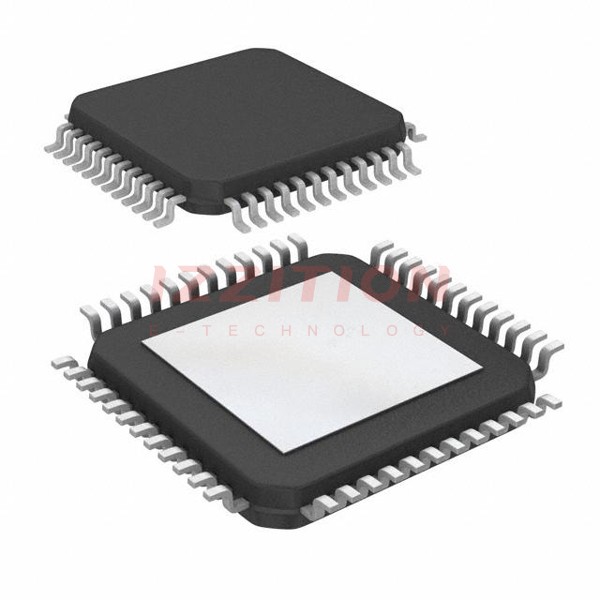

Package / Case:48-LQFP Exposed Pad
Supplier Device Package:48-eLQFP (7x7)
0 Remaining View Similar

In Stock

$14.71
25

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC3871ILXE#PBF LTC3871ELXE#PBF   LTC3871HLXE#PBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active
Output Type Transistor Driver Transistor Driver Transistor Driver
Function Step-Up, Step-Down Step-Up, Step-Down Step-Up, Step-Down
Output Configuration Positive Positive Positive
Topology Buck, Boost Buck, Boost Buck, Boost
Number of Outputs 2 2 2
Output Phases Programmable Programmable Programmable
Voltage - Supply (Vcc/Vdd) 1.2V ~ 100V 1.2V ~ 100V 1.2V ~ 100V
Frequency - Switching 60kHz ~ 460kHz 60kHz ~ 460kHz 60kHz ~ 460kHz
Duty Cycle (Max) 98% 98% 98%
Synchronous Rectifier Yes Yes Yes
Clock Sync Yes Yes Yes
Serial Interfaces - - -
Control Features Current Limit, Enable, Frequency Control, Phase Control, Soft Start Current Limit, Enable, Frequency Control, Phase Control, Soft Start Current Limit, Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature -40°C ~ 125°C (TA) -40°C ~ 125°C (TA) -40°C ~ 150°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 48-LQFP Exposed Pad 48-LQFP Exposed Pad 48-LQFP Exposed Pad
Supplier Device Package 48-eLQFP (7x7) 48-eLQFP (7x7) 48-eLQFP (7x7)
