| Part Number | LTC3871ILXE-1#PBF | LTC3871ELXE-1#PBF | LTC3871HLXE-1#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Down | Step-Up, Step-Down | Step-Up, Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck, Boost | Buck, Boost | Buck, Boost |
| Number of Outputs | 2 | 2 | 2 |
| Output Phases | 12 | 12 | 12 |
| Voltage - Supply (Vcc/Vdd) | 1.2V ~ 100V | 1.2V ~ 100V | 1.2V ~ 100V |
| Frequency - Switching | 60kHz ~ 460kHz | 60kHz ~ 460kHz | 60kHz ~ 460kHz |
| Duty Cycle (Max) | 98% | 98% | 98% |
| Synchronous Rectifier | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Soft Start | Current Limit, Enable, Frequency Control, Phase Control, Soft Start | Current Limit, Enable, Frequency Control, Phase Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

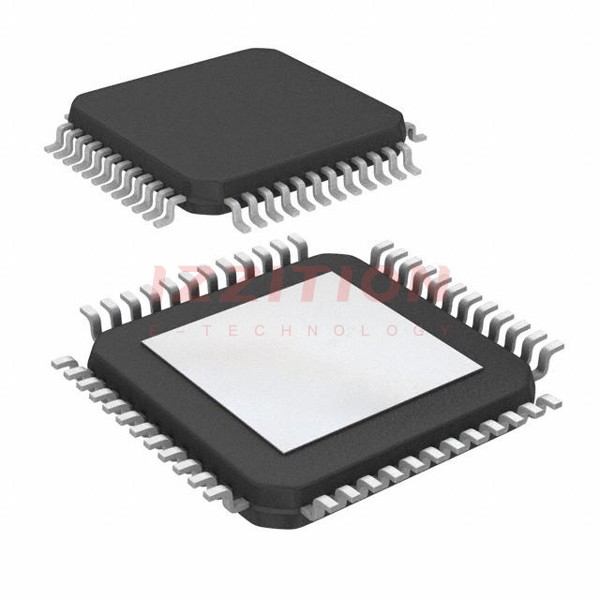

| Package / Case | 48-LQFP Exposed Pad | 48-LQFP Exposed Pad | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-eLQFP (7x7) | 48-eLQFP (7x7) | 48-eLQFP (7x7) |
