LTC3862EUH#TRPBF
  • Share:

Analog Devices Inc. LTC3862EUH#TRPBF

Manufacturer No:
LTC3862EUH#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTC3862EUH#TRPBF Datasheet
ECAD Model:
-
Description:

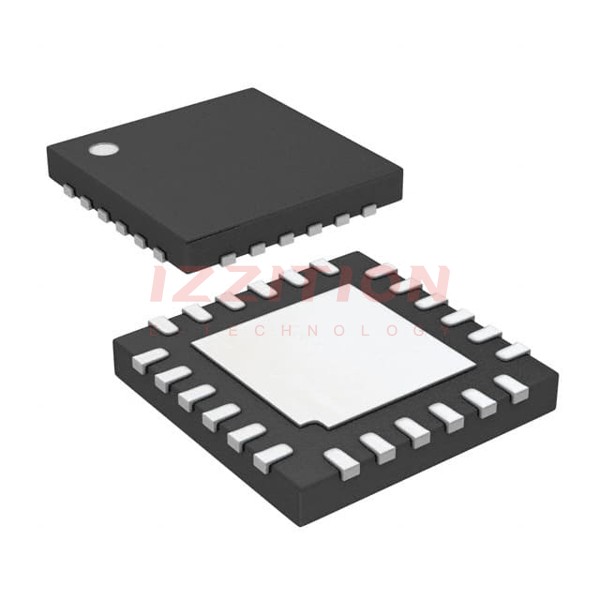

IC REG CTRLR BOOST/SEPIC 24QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Up, Step-Up/Step-Down
Output Configuration:Positive
Topology:Boost, SEPIC
Number of Outputs:2
Output Phases:2
Voltage - Supply (Vcc/Vdd):4V ~ 36V
Frequency - Switching:75kHz ~ 500kHz
Duty Cycle (Max):96%
Synchronous Rectifier:No
Clock Sync:Yes
Serial Interfaces:-
Control Features:Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:24-WQFN Exposed Pad
Supplier Device Package:24-QFN (5x5)
0 Remaining View Similar

In Stock

$5.14
101

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC3862EUH#TRPBF LTC3865EUH#TRPBF   LTC3862IUH#TRPBF   LTC3862HUH#TRPBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active
Output Type Transistor Driver Transistor Driver Transistor Driver Transistor Driver
Function Step-Up, Step-Up/Step-Down Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down
Output Configuration Positive Positive Positive Positive
Topology Boost, SEPIC Buck Boost, SEPIC Boost, SEPIC
Number of Outputs 2 2 2 2
Output Phases 2 2 2 2
Voltage - Supply (Vcc/Vdd) 4V ~ 36V 4.5V ~ 38V 4V ~ 36V 4V ~ 36V
Frequency - Switching 75kHz ~ 500kHz 250kHz ~ 770kHz 75kHz ~ 500kHz 75kHz ~ 500kHz
Duty Cycle (Max) 96% 95% 96% 96%
Synchronous Rectifier No Yes No No
Clock Sync Yes No Yes Yes
Serial Interfaces - - - -
Control Features Enable, Frequency Control, Phase Control, Soft Start Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking Enable, Frequency Control, Phase Control, Soft Start Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 24-WQFN Exposed Pad 32-WFQFN Exposed Pad 24-WQFN Exposed Pad 24-WQFN Exposed Pad
Supplier Device Package 24-QFN (5x5) 32-QFN (5x5) 24-QFN (5x5) 24-QFN (5x5)
