LTC3786EUD#PBF
  • Share:

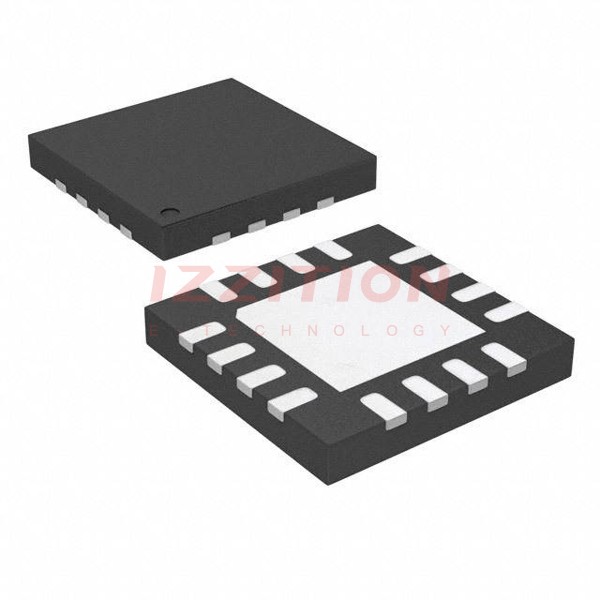

Analog Devices Inc. LTC3786EUD#PBF

Manufacturer No:
LTC3786EUD#PBF
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
LTC3786EUD#PBF Datasheet
ECAD Model:
-
Description:
IC REG CTRLR MULT TOPOLOGY 16QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Output Type:Transistor Driver
Function:Step-Up, Step-Up/Step-Down
Output Configuration:Positive
Topology:Boost, Flyback, SEPIC
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):4.5V ~ 38V
Frequency - Switching:105kHz ~ 760kHz
Duty Cycle (Max):96%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:16-WFQFN Exposed Pad
Supplier Device Package:16-QFN (3x3)
0 Remaining View Similar

In Stock

$6.68
25

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC3786EUD#PBF LTC3786IUD#PBF   LTC3786HUD#PBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active
Output Type Transistor Driver Transistor Driver Transistor Driver
Function Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down Step-Up, Step-Up/Step-Down
Output Configuration Positive Positive Positive
Topology Boost, Flyback, SEPIC Boost, Flyback, SEPIC Boost, Flyback, SEPIC
Number of Outputs 1 1 1
Output Phases 1 1 1
Voltage - Supply (Vcc/Vdd) 4.5V ~ 38V 4.5V ~ 38V 4.5V ~ 38V
Frequency - Switching 105kHz ~ 760kHz 105kHz ~ 760kHz 105kHz ~ 760kHz
Duty Cycle (Max) 96% 96% 96%
Synchronous Rectifier Yes Yes Yes
Clock Sync No No No
Serial Interfaces - - -
Control Features Current Limit, Enable, Frequency Control, Power Good, Soft Start Current Limit, Enable, Frequency Control, Power Good, Soft Start Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 16-WFQFN Exposed Pad 16-WFQFN Exposed Pad 16-WFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3) 16-QFN (3x3) 16-QFN (3x3)
