Please send RFQ , we will respond immediately.
| Part Number | LTC3772EDDB#TRPBF | LTC3772BEDDB#TRPBF | LTC3772EDDB#TRMPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 9.8V | 2.75V ~ 9.8V | 2.75V ~ 9.8V |
| Frequency - Switching | 550kHz | 200kHz ~ 550kHz | 550kHz |
| Duty Cycle (Max) | 100% | 100% | 100% |
| Synchronous Rectifier | No | No | No |
| Clock Sync | No | No | No |
| Serial Interfaces | - | - | - |
| Control Features | Current Limit, Enable | Current Limit, Enable | Current Limit, Enable |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

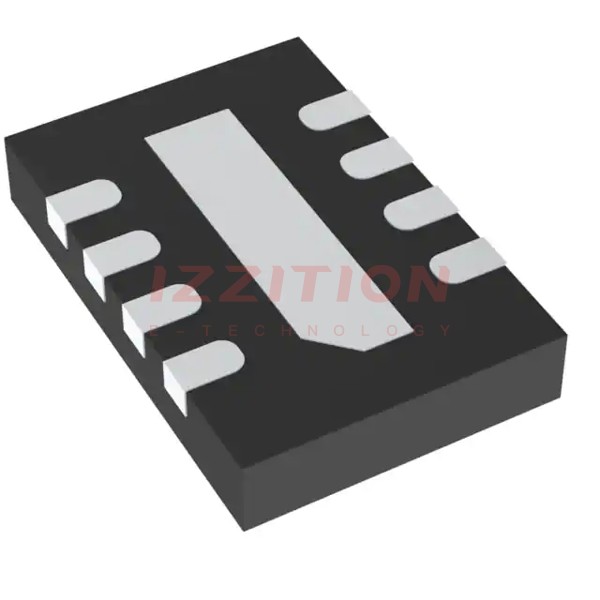

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) |
