| Part Number | LTC3633AEFE-3 | LTC3633AIFE-3 | LTC3633AEFE-1 | LTC3633AEFE-2 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 2 | 2 | 2 | 2 |
| Voltage - Input (Min) | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Input (Max) | 20V | 20V | 20V | 20V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.5V | 1.5V | 0.6V |
| Voltage - Output (Max) | 12V | 12V | 12V | 6V |
| Current - Output | 3A | 3A | 3A | 3A |
| Frequency - Switching | 500kHz ~ 4MHz | 500kHz ~ 4MHz | 500kHz ~ 4MHz | 500kHz ~ 4MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

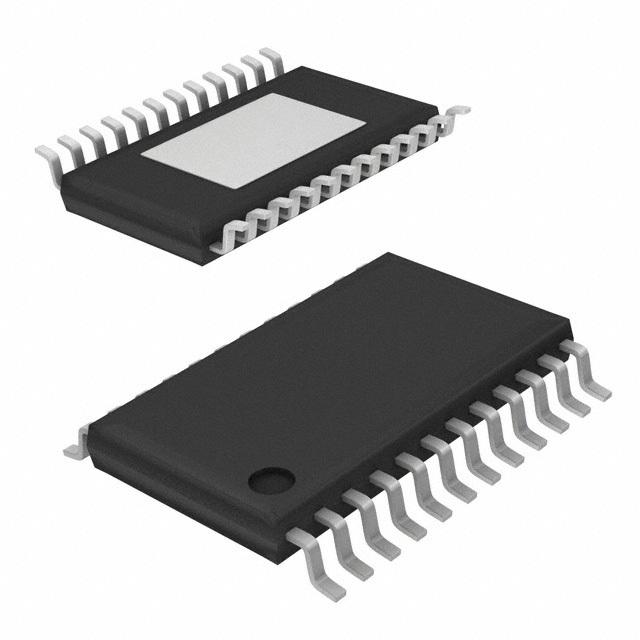

| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP | 28-TSSOP-EP | 28-TSSOP-EP | 28-TSSOP-EP |
