| Part Number | LTC3630EDHC#PBF | LTC3630IDHC#PBF | LTC3630HDHC#PBF | LTC3630AEDHC#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive or Negative | Positive or Negative | Positive or Negative | Positive or Negative |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 4V | 4V | 4V |
| Voltage - Input (Max) | 65V | 65V | 65V | 76V |
| Voltage - Output (Min/Fixed) | 0.8V (1.8V, 3.3V, 5V) | 0.8V (1.8V, 3.3V, 5V) | 0.8V (1.8V, 3.3V, 5V) | 0.8V (1.8V, 3.3V, 5V) |
| Voltage - Output (Max) | 65V | 65V | 65V | 76V |
| Current - Output | 500mA | 500mA | 500mA | 500mA |
| Frequency - Switching | - | - | - | - |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

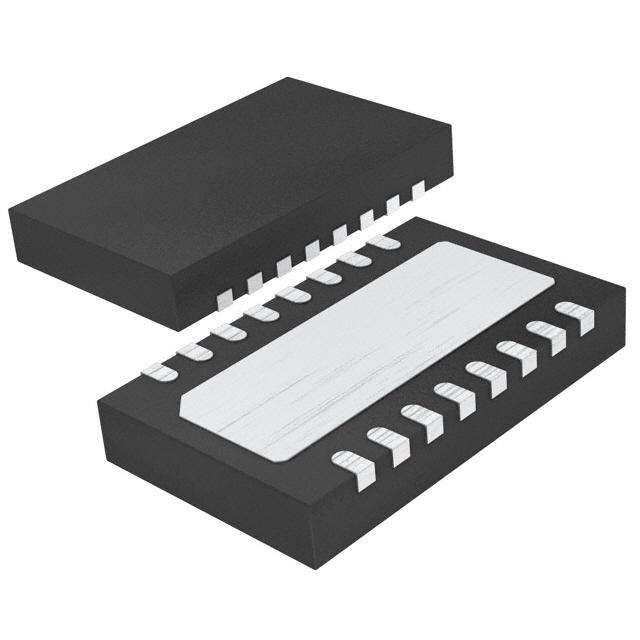

| Package / Case | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) | 16-DFN (5x3) | 16-DFN (5x3) | 16-DFN (5x3) |
