| Part Number | LTC3562EUD#PBF | LTC3569EUD#PBF |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Function | Step-Down | Step-Down |
| Output Configuration | Positive | Positive |
| Topology | Buck | Buck |
| Output Type | Adjustable (Programmable) | Adjustable |
| Number of Outputs | 4 | 3 |
| Voltage - Input (Min) | 2.7V | 2.5V |
| Voltage - Input (Max) | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.425V (0.6V) | 0.425V |
| Voltage - Output (Max) | 0.8V (3.78V) | 5.5V |
| Current - Output | 400mA, 600mA | 600mA, 1.2A |
| Frequency - Switching | 2.25MHz | 2.25MHz, 1MHz ~ 3MHz |
| Synchronous Rectifier | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

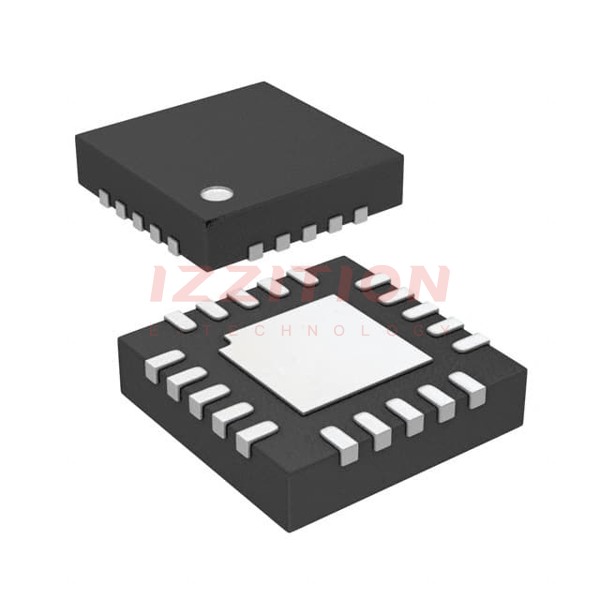

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) | 20-QFN (3x3) |
