| Part Number | LTC3526EDC#TRPBF | LTC3526LEDC#TRPBF | LTC3526BEDC#TRPBF | LTC3526EDC#TRMPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 1V | 0.5V | 1V | 1V |
| Voltage - Input (Max) | 5.25V | 5V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 1.6V | 1.5V | 1.6V | 1.6V |
| Voltage - Output (Max) | 5.25V | 5.25V | 5.25V | 5.25V |
| Current - Output | 500mA (Switch) | 550mA (Switch) | 500mA (Switch) | 500mA (Switch) |
| Frequency - Switching | 1MHz | 1MHz | 1MHz | 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

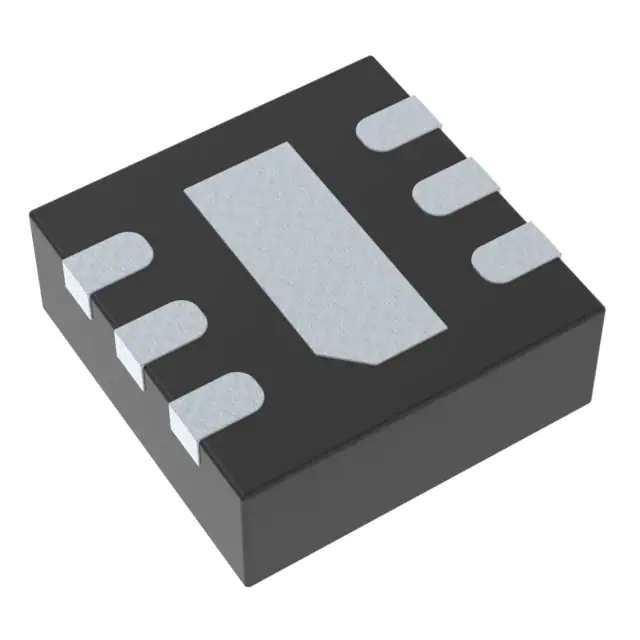

| Package / Case | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) |
