| Part Number | LTC3417AIDHC-1#TRPBF | LTC3417AIDHC-2#TRPBF | LTC3417AEDHC-1#TRPBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 2 | 2 | 2 |
| Voltage - Input (Min) | 2.25V | 2.25V | 2.25V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 5V | 5V | 5V |
| Current - Output | 1A, 1.5A | 1A, 1.5A | 1A, 1.5A |
| Frequency - Switching | 1.5MHz, 600kHz ~ 4MHz | 1.5MHz, 600kHz ~ 4MHz | 1.5MHz, 600kHz ~ 4MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

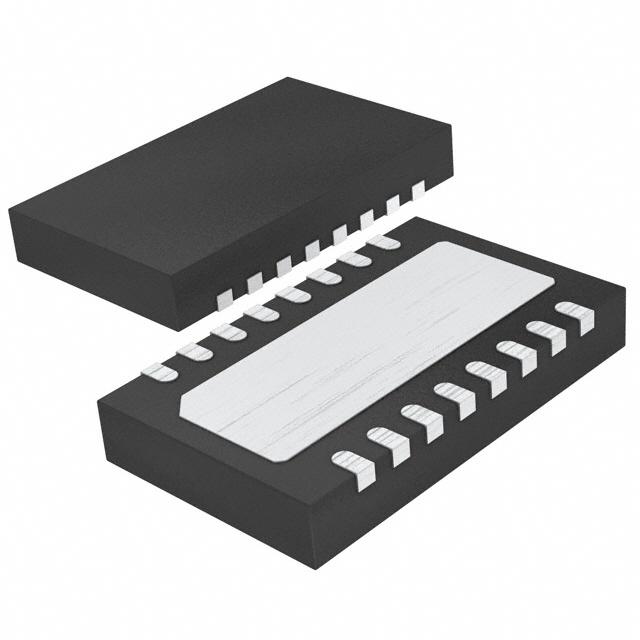

| Package / Case | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) | 16-DFN (5x3) | 16-DFN (5x3) |
