LTC3311HV#TRPBF
  • Share:

Analog Devices Inc. LTC3311HV#TRPBF

Manufacturer No:
LTC3311HV#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTC3311HV#TRPBF Datasheet
ECAD Model:
-
Description:
10A LOW VLTG SYNCH STEP-DWN SILN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):2.25V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):0.5V
Voltage - Output (Max):5.5V
Current - Output:12.5A
Frequency - Switching:2MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount

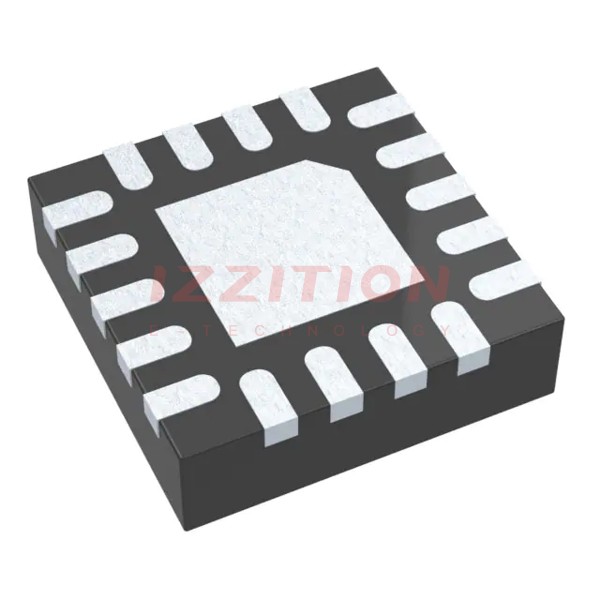

Package / Case:18-TFQFN Exposed Pad
Supplier Device Package:18-LQFN (3x3)
0 Remaining View Similar

In Stock

$6.11
66

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC3311HV#TRPBF LTC3311JV#TRPBF   LTC3311HV#TRMPBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active
Function Step-Down Step-Down Step-Down
Output Configuration Positive Positive Positive
Topology Buck Buck Buck
Output Type Adjustable Adjustable Adjustable
Number of Outputs 1 1 1
Voltage - Input (Min) 2.25V 2.25V 2.25V
Voltage - Input (Max) 5.5V 5.5V 5.5V
Voltage - Output (Min/Fixed) 0.5V 0.5V 0.5V
Voltage - Output (Max) 5.5V 5.5V 5.5V
Current - Output 12.5A 12.5A 12.5A
Frequency - Switching 2MHz 2MHz 2MHz
Synchronous Rectifier Yes Yes Yes
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 18-TFQFN Exposed Pad 18-TFQFN Exposed Pad 18-TFQFN Exposed Pad
Supplier Device Package 18-LQFN (3x3) 18-LQFN (3x3) 18-LQFN (3x3)
