| Part Number | LTC3265EDHC#PBF | LTC3265HDHC#PBF | LTC3265IDHC#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Function | Ratiometric | Ratiometric | Ratiometric |
| Output Configuration | Positive and Negative (Dual Rail) | Positive and Negative (Dual Rail) | Positive and Negative (Dual Rail) |
| Topology | Charge Pump | Charge Pump | Charge Pump |
| Output Type | Fixed | Fixed | Fixed |
| Number of Outputs | 2 | 2 | 2 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 32V | 32V | 32V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin | -Vin, 2Vin | -Vin, 2Vin |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 100mA | 100mA | 100mA |
| Frequency - Switching | 50kHz ~ 500kHz | 50kHz ~ 500kHz | 50kHz ~ 500kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

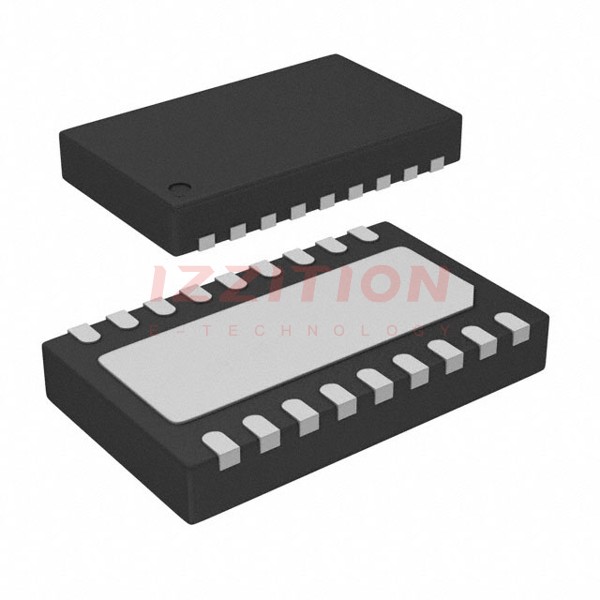

| Package / Case | 18-WFDFN Exposed Pad | 18-WFDFN Exposed Pad | 18-WFDFN Exposed Pad |
| Supplier Device Package | 18-DFN (5x3) | 18-DFN (5x3) | 18-DFN (5x3) |
