Please send RFQ , we will respond immediately.
| Part Number | LTC3126HFE#TRPBF | LTC3126IFE#TRPBF | LTC3124HFE#TRPBF | LTC3126EFE#TRPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Up | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Boost | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.4V | 2.4V | 1.8V | 2.4V |
| Voltage - Input (Max) | 42V | 42V | 5.5V | 42V |
| Voltage - Output (Min/Fixed) | 0.818V | 0.818V | 2.5V | 0.818V |
| Voltage - Output (Max) | 42V | 42V | 15V | 42V |
| Current - Output | 2.5A | 2.5A | 2.5A (Switch) | 2.5A |
| Frequency - Switching | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 1MHz | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

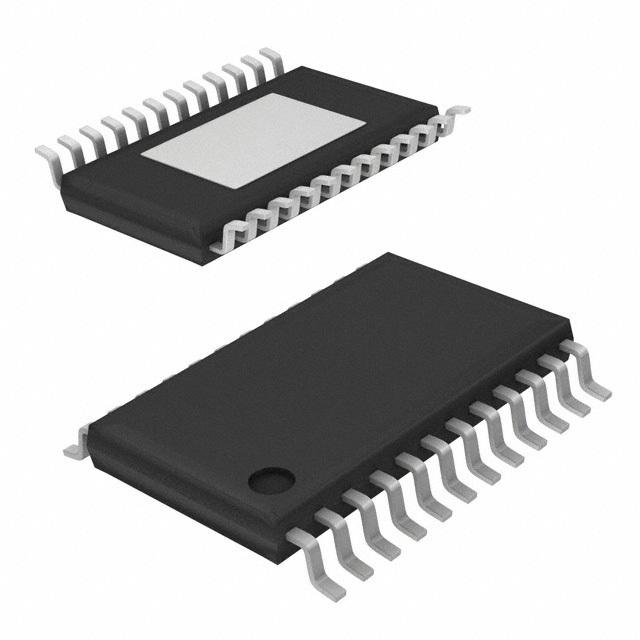

| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP | 28-TSSOP-EP | 16-TSSOP-EP | 28-TSSOP-EP |
