| Part Number | LTC3118IUFD#TRPBF | LTC3119IUFD#TRPBF | LTC3128IUFD#TRPBF | LTC3118EUFD#TRPBF | LTC3118HUFD#TRPBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.2V | 2.5V | 1.73V | 2.2V | 2.2V |
| Voltage - Input (Max) | 18V | 18V | 5.5V | 18V | 18V |
| Voltage - Output (Min/Fixed) | 2V | 0.8V | 1.8V | 2V | 2V |
| Voltage - Output (Max) | 18V | 18V | 5.5V | 18V | 18V |
| Current - Output | 2A | 5A | 3A | 2A | 2A |
| Frequency - Switching | 1.2MHz | 400kHz ~ 2MHz | 1.2MHz | 1.2MHz | 1.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

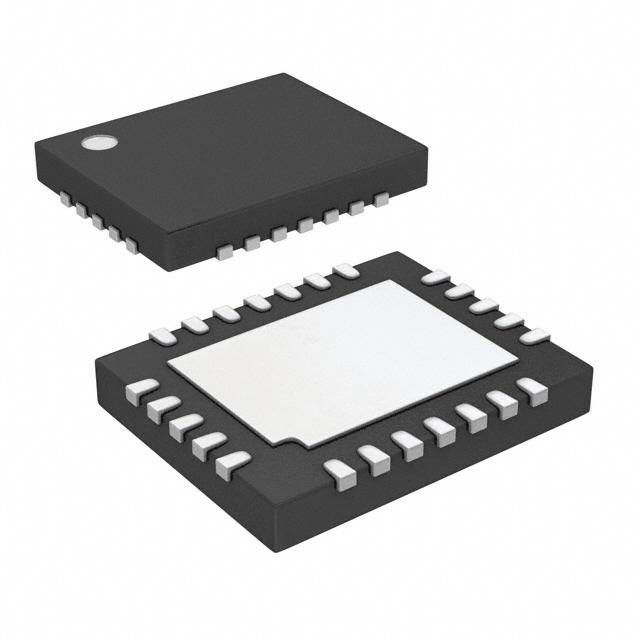

| Package / Case | 24-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x5) | 28-QFN (4x5) | 20-QFN (4x5) | 24-QFN (4x5) | 24-QFN (4x5) |
