| Part Number | LTC3114IDHC-1#PBF | LTC3114IDHC-1#WPBF | LTC3114EDHC-1#PBF | LTC3114HDHC-1#PBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.2V | 2.2V | 2.2V | 2.2V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Output (Max) | 40V | 40V | 40V | 40V |
| Current - Output | 1A | 1A | 1A | 1A |
| Frequency - Switching | 1.2MHz | 1.2MHz | 1.2MHz | 1.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

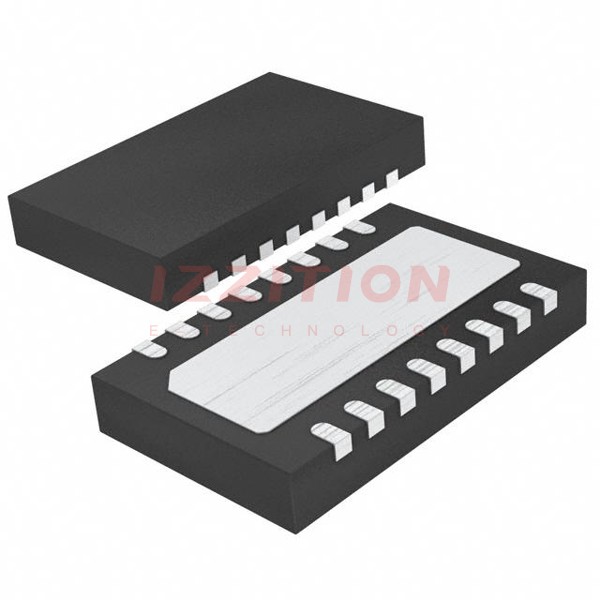

| Package / Case | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (5x3) | 16-DFN (5x3) | 16-DFN (5x3) | 16-DFN (5x3) |
