Please send RFQ , we will respond immediately.
| Part Number | LTC3025IDC-4#TRPBF | LTC3025EDC-4#TRPBF | LTC3025IDC-1#TRPBF | LTC3025IDC-2#TRPBF | LTC3025IDC-3#TRPBF | LTC3025IDC-4#TRMPBF |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Adjustable | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 0.4V | 1.2V | 1.5V | 1.8V |
| Voltage - Output (Max) | - | - | 3.6V | - | - | - |
| Voltage Dropout (Max) | 0.185V @ 500mA | 0.185V @ 500mA | 0.17V @ 500mA | 0.17V @ 500mA | 0.185V @ 500mA | 0.185V @ 500mA |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 500mA | 500mA |
| Current - Quiescent (Iq) | 80 µA | 80 µA | 80 µA | 80 µA | 80 µA | 80 µA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | - | - | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

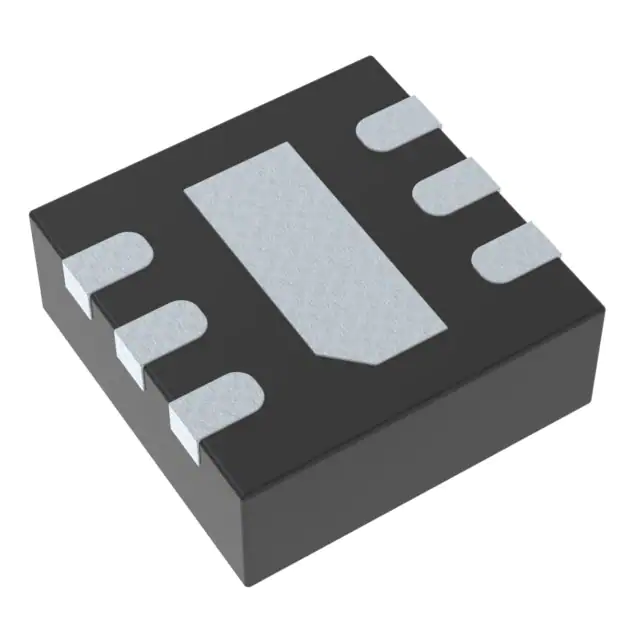

| Package / Case | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) |
