Please send RFQ , we will respond immediately.
| Part Number | LTC2912HDDB-1#TRPBF | LTC2915HDDB-1#TRPBF | LTC2916HDDB-1#TRPBF | LTC2912IDDB-1#TRPBF | LTC2912HDDB-2#TRPBF | LTC2912HDDB-3#TRPBF | LTC2911HDDB-1#TRPBF | LTC2912CDDB-1#TRPBF | LTC2912HDDB-1#TRMPBF |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Simple Reset/Power-On Reset | Multi-Voltage Supervisor | Multi-Voltage Supervisor | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Multi-Voltage Supervisor | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 |
| Voltage - Threshold | Adjustable/Selectable | 27 Selectable Threshold Combinations | 27 Selectable Threshold Combinations | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | 3.086V, 4.675V, Adj | Adjustable/Selectable | Adjustable/Selectable |
| Output | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Push-Pull, Totem Pole | Open Drain or Open Collector | Open Drain or Open Collector |
| Reset | Active Low | Active Low | Active Low | Active Low | Active High/Active Low | Active High | Active Low | Active Low | Active Low |
| Reset Timeout | Adjustable/Selectable | 150ms Minimum | 150ms Minimum | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable | Adjustable/Selectable |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

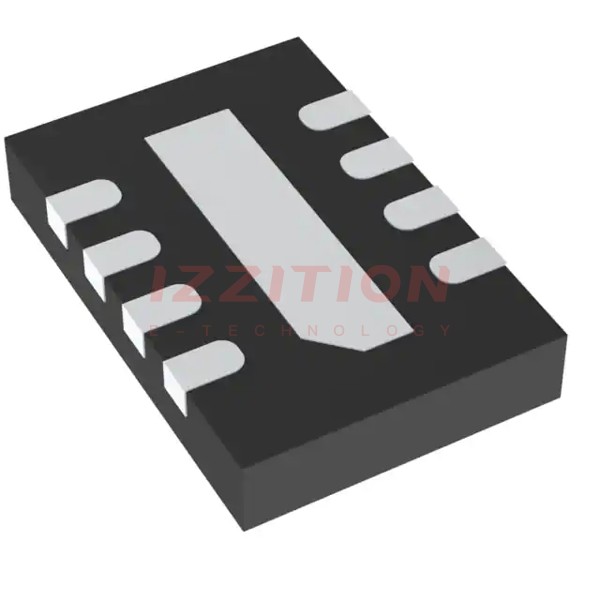

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) | 8-DFN (3x2) |
