LTC2672IUH-16#TRPBF
  • Share:

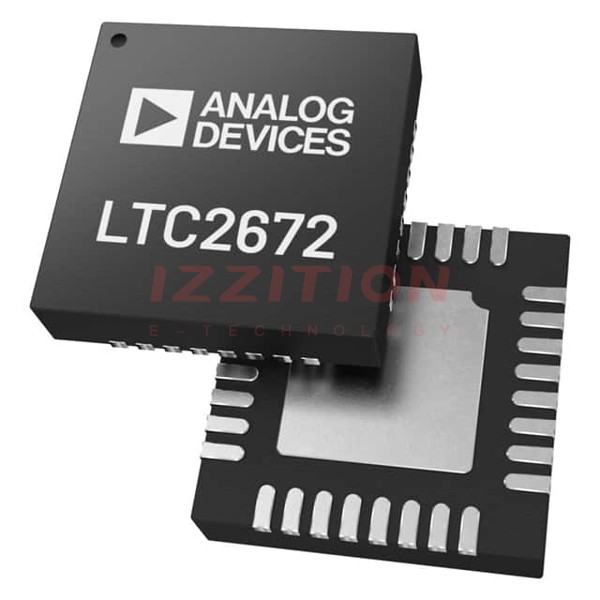

Analog Devices Inc. LTC2672IUH-16#TRPBF

Manufacturer No:
LTC2672IUH-16#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTC2672IUH-16#TRPBF Datasheet
ECAD Model:
-
Description:
5CH 300MA 16BIT CURRENTSOURCEOUT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:16
Number of D/A Converters:5
Settling Time:21.1µs (Typ)
Output Type:Current - Unbuffered
Differential Output:No
Data Interface:Serial, SPI
Reference Type:External, Internal
Voltage - Supply, Analog:2.85V ~ 5.5V
Voltage - Supply, Digital:1.7V ~ 5.5V
INL/DNL (LSB):±12, ±0.45LSB
Architecture:Current Source
Operating Temperature:-40°C ~ 85°C
Package / Case:32-WFQFN Exposed Pad, CSP
Supplier Device Package:32-LFCSP (5x5)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$30.57
6

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC2672IUH-16#TRPBF LTC2662IUH-16#TRPBF   LTC2672CUH-16#TRPBF   LTC2672HUH-16#TRPBF   LTC2672IUH-12#TRPBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active
Number of Bits 16 16 16 16 16
Number of D/A Converters 5 5 5 5 5
Settling Time 21.1µs (Typ) 8.7ms (Typ) 21.1µs (Typ) 21.1µs (Typ) 21.1µs (Typ)
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output No No No No No
Data Interface Serial, SPI Serial, SPI Serial, SPI Serial, SPI Serial, SPI
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 2.85V ~ 5.5V 2.85V ~ 5.5V 2.85V ~ 5.5V 2.85V ~ 5.5V 2.85V ~ 5.5V
Voltage - Supply, Digital 1.7V ~ 5.5V 1.71V ~ 5.5V 1.7V ~ 5.5V 1.7V ~ 5.5V 1.7V ~ 5.5V
INL/DNL (LSB) ±12, ±0.45LSB ±12, ±0.2 ±12, ±0.45LSB ±12, ±0.45LSB 12LSB, 0.45LSB
Architecture Current Source Current Source Current Source Current Source Current Source
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 125°C -40°C ~ 85°C
Package / Case 32-WFQFN Exposed Pad, CSP 32-WFQFN Exposed Pad 32-WFQFN Exposed Pad, CSP 32-WFQFN Exposed Pad, CSP 32-WFQFN Exposed Pad
Supplier Device Package 32-LFCSP (5x5) 32-QFN (5x5) 32-LFCSP (5x5) 32-LFCSP (5x5) 32-QFN (5x5)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
