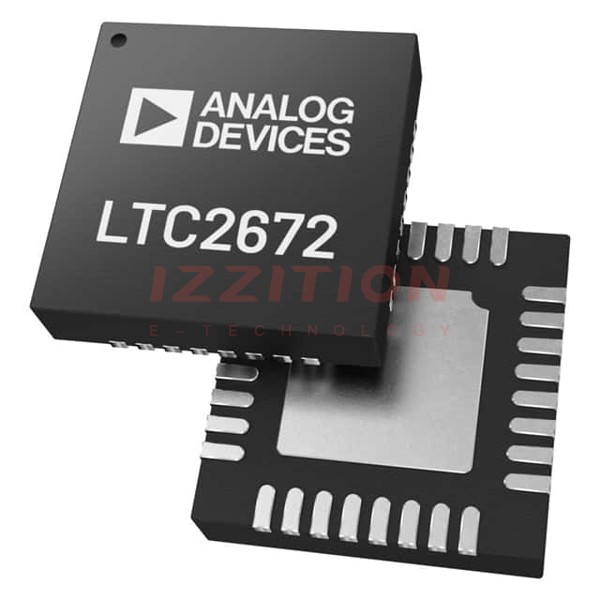

| Part Number | LTC2672CUH-16#PBF | LTC2672IUH-16#PBF | LTC2672HUH-16#PBF | LTC2662CUH-16#PBF | LTC2672CUH-12#PBF |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 16 | 12 |
| Number of D/A Converters | 5 | 5 | 5 | 5 | 5 |
| Settling Time | 21.1µs (Typ) | 21.1µs (Typ) | 21.1µs (Typ) | 8.7ms (Typ) | 21.1µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No | No |
| Data Interface | Serial, SPI | Serial, SPI | Serial, SPI | Serial, SPI | Serial, SPI |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 5.5V | 2.85V ~ 5.5V | 2.85V ~ 5.5V | 2.85V ~ 5.5V | 2.85V ~ 5.5V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.71V ~ 5.5V | 1.7V ~ 5.5V |
| INL/DNL (LSB) | ±12, ±0.45LSB | ±12, ±0.45LSB | ±12, ±0.45LSB | ±12, ±0.2 | 12LSB, 0.45LSB |
| Architecture | Current Source | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
