LTC2655BCUF-H16#TRPBF
  • Share:

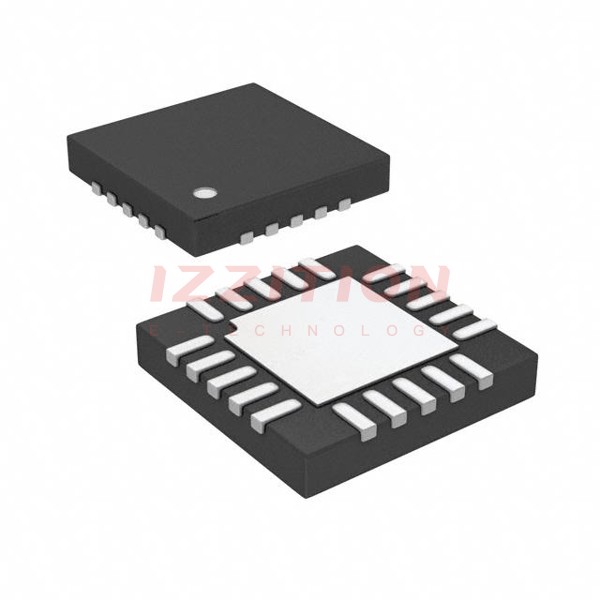

Analog Devices Inc. LTC2655BCUF-H16#TRPBF

Manufacturer No:
LTC2655BCUF-H16#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
LTC2655BCUF-H16#TRPBF Datasheet
ECAD Model:
-
Description:
IC DAC 16BIT V-OUT 20QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:16
Number of D/A Converters:4
Settling Time:9.1µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:I²C
Reference Type:External, Internal
Voltage - Supply, Analog:5V
Voltage - Supply, Digital:5V
INL/DNL (LSB):±2, ±0.3
Architecture:-
Operating Temperature:0°C ~ 70°C
Package / Case:20-WFQFN Exposed Pad
Supplier Device Package:20-QFN (4x4)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$12.21
51

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC2655BCUF-H16#TRPBF LTC2655BCUF-L16#TRPBF   LTC2655BIUF-H16#TRPBF   LTC2654BCUF-H16#TRPBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active
Number of Bits 16 16 16 16
Number of D/A Converters 4 4 4 4
Settling Time 9.1µs (Typ) 9.1µs (Typ) 9.1µs (Typ) 8.9µs (Typ)
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No No
Data Interface I²C I²C I²C SPI
Reference Type External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 5V 2.7V ~ 5.5V 5V 5V
Voltage - Supply, Digital 5V 2.7V ~ 5.5V 5V 5V
INL/DNL (LSB) ±2, ±0.3 ±2, ±0.3 ±2, ±0.3 ±2, ±0.3
Architecture - - - -
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C -40°C ~ 85°C 0°C ~ 70°C
Package / Case 20-WFQFN Exposed Pad 20-WFQFN Exposed Pad 20-WFQFN Exposed Pad 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (4x4) 20-QFN (4x4) 20-QFN (4x4) 20-QFN (4x4)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
