Please send RFQ , we will respond immediately.
| Part Number | LTC2654BIUF-H16#TRPBF | LTC2654BIUF-L16#TRPBF | LTC2655BIUF-H16#TRPBF | LTC2654BCUF-H16#TRPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 16 |
| Number of D/A Converters | 4 | 4 | 4 | 4 |
| Settling Time | 8.9µs (Typ) | 8.9µs (Typ) | 9.1µs (Typ) | 8.9µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | SPI | SPI | I²C | SPI |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | 2.7V ~ 5.5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 2.7V ~ 5.5V | 5V | 5V |
| INL/DNL (LSB) | ±2, ±0.3 | ±2, ±0.3 | ±2, ±0.3 | ±2, ±0.3 |
| Architecture | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C |

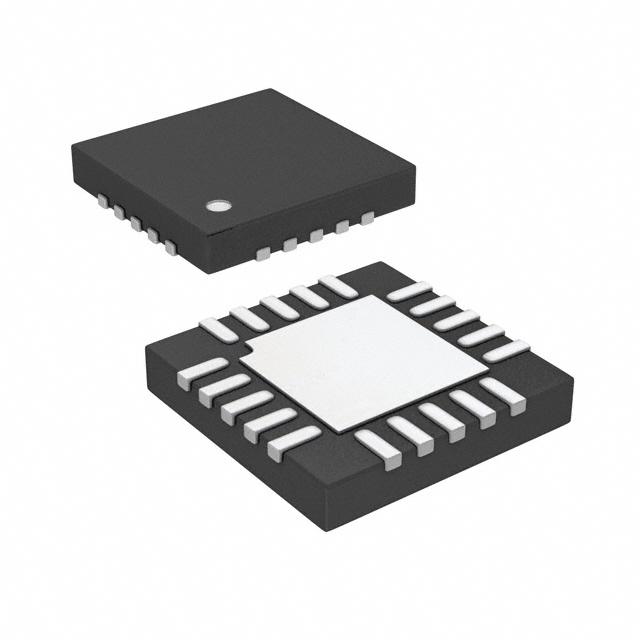

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) | 20-QFN (4x4) | 20-QFN (4x4) | 20-QFN (4x4) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
