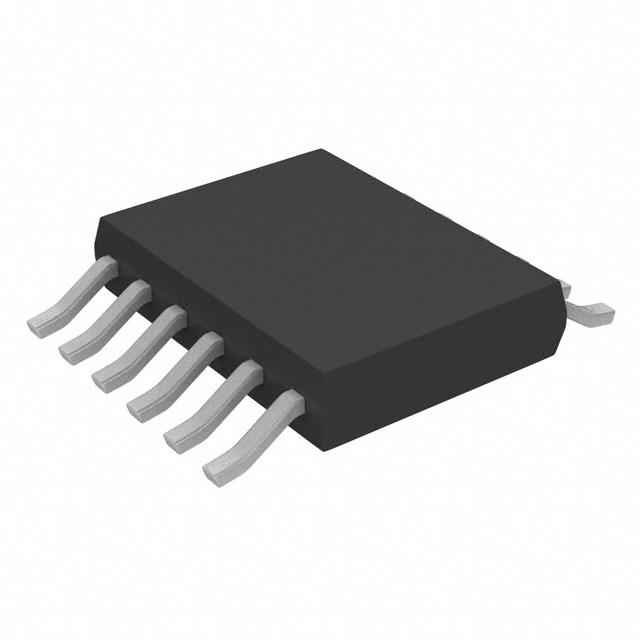

| Part Number | LTC2301CMS#TRPBF | LTC2305CMS#TRPBF | LTC2301IMS#TRPBF | LTC2301HMS#TRPBF |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 14k | 14k | 14k | 14k |
| Number of Inputs | 1 | 2 | 1 | 1 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | I²C | I²C | I²C | I²C |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V |
| Features | Selectable Address | Selectable Address | Selectable Address | Selectable Address |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) | 12-TSSOP (0.118", 3.00mm Width) | 12-TSSOP (0.118", 3.00mm Width) | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP | 12-MSOP | 12-MSOP | 12-MSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
