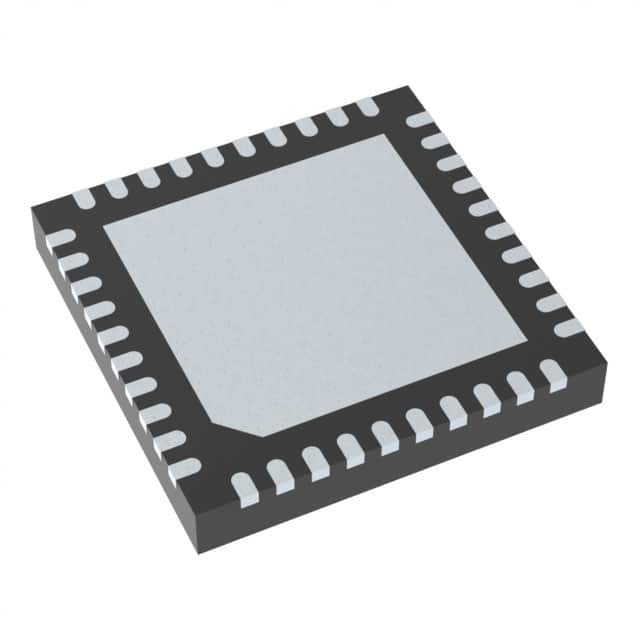

| Part Number | LTC2259IUJ-14#TRPBF | LTC2259IUJ-16#TRPBF | LTC2256IUJ-14#TRPBF | LTC2257IUJ-14#TRPBF | LTC2258IUJ-14#TRPBF | LTC2259CUJ-14#TRPBF | LTC2259IUJ-12#TRPBF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 14 | 16 | 14 | 14 | 14 | 14 | 12 |
| Sampling Rate (Per Second) | 80M | 80M | 25M | 40M | 65M | 80M | 80M |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential |
| Data Interface | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| Features | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Package / Case | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) | 40-QFN (6x6) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
