| Part Number | LTC2068HUD#PBF | LTC2068IUD#PBF | LTC2065HUD#PBF |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Amplifier Type | Zero-Drift | Zero-Drift | Zero-Drift |
| Number of Circuits | 4 | 4 | 4 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.0175V/µs | 0.0175V/µs | 0.0035V/µs |
| Gain Bandwidth Product | 100 kHz | 100 kHz | 20 kHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 5 pA | 5 pA | 3 pA |
| Voltage - Input Offset | 1 µV | 1 µV | 1 µV |
| Current - Supply | 7.5µA (x4 Channels) | 7.5µA (x4 Channels) | 1.4µA (x4 Channels) |
| Current - Output / Channel | 51 mA | 51 mA | 51 mA |
| Voltage - Supply Span (Min) | 1.7 V | 1.7 V | 1.7 V |
| Voltage - Supply Span (Max) | 5.25 V | 5.25 V | 5.25 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

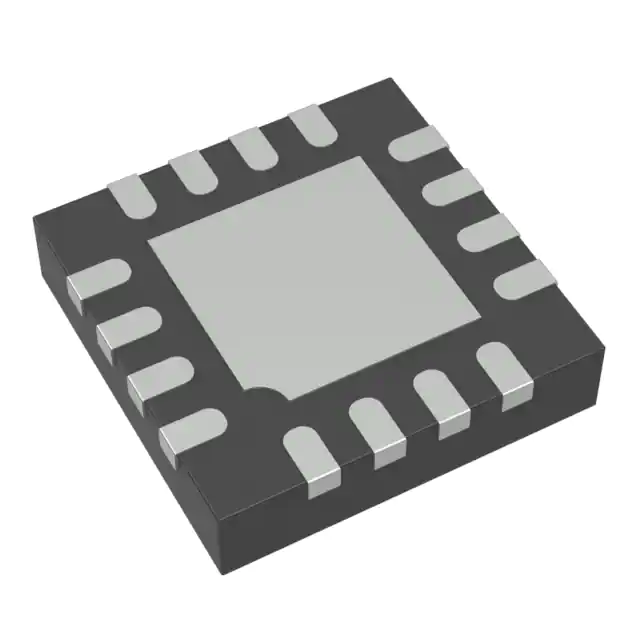

| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
