LTC2000IY-11
  • Share:

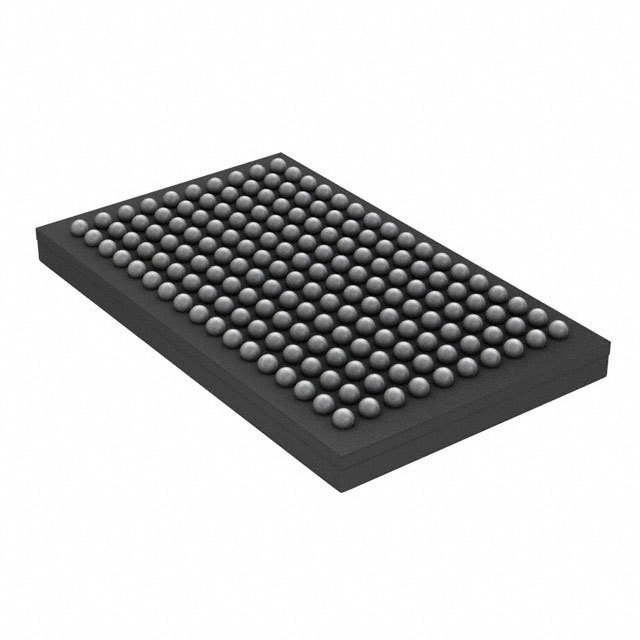

Analog Devices Inc. LTC2000IY-11

Manufacturer No:
LTC2000IY-11
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
LTC2000IY-11 Datasheet
ECAD Model:
-
Description:
IC DAC 11BIT A-OUT 170BGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:11
Number of D/A Converters:1
Settling Time:2.2ns (Typ)
Output Type:Current - Unbuffered
Differential Output:Yes
Data Interface:LVDS - Parallel
Reference Type:External, Internal
Voltage - Supply, Analog:1.8V ~ 1.92V, 3.135V ~ 3.465V
Voltage - Supply, Digital:1.8V ~ 1.92V, 3.135V ~ 3.465V
INL/DNL (LSB):±0.2, ±0.1
Architecture:Current Steering
Operating Temperature:-40°C ~ 85°C
Package / Case:170-LFBGA
Supplier Device Package:170-BGA (15x9)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
586

Please send RFQ , we will respond immediately.

Similar Products

Part Number LTC2000IY-11 LTC2000IY-14   LTC2000IY-16   LTC2000AIY-11   LTC2000CY-11
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Number of Bits 11 14 16 11 11
Number of D/A Converters 1 1 1 1 1
Settling Time 2.2ns (Typ) 2.2ns (Typ) 2.2ns (Typ) 2.2ns (Typ) 2.2ns (Typ)
Output Type Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered Current - Unbuffered
Differential Output Yes Yes Yes Yes Yes
Data Interface LVDS - Parallel LVDS - Parallel LVDS - Parallel LVDS - Parallel, SPI LVDS - Parallel
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V
Voltage - Supply, Digital 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V 1.8V ~ 1.92V, 3.135V ~ 3.465V
INL/DNL (LSB) ±0.2, ±0.1 ±0.5, ±0.2 ±1, ±0.5 ±0.2, ±0.1 ±0.2, ±0.1
Architecture Current Steering Current Steering Current Steering Current Steering Current Steering
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C
Package / Case 170-LFBGA 170-LFBGA 170-LFBGA 170-LFBGA 170-LFBGA
Supplier Device Package 170-BGA (15x9) 170-BGA (15x9) 170-BGA (15x9) 170-BGA (15x9) 170-BGA (15x9)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
